Shielded FTP 23AWG Cat6 RJ45 Modular Plug Network Cable Assembly OEM ODM

Shielded FTP 23AWG Cat6 RJ45 Modular Plug Network Cable Assembly OEM ODM

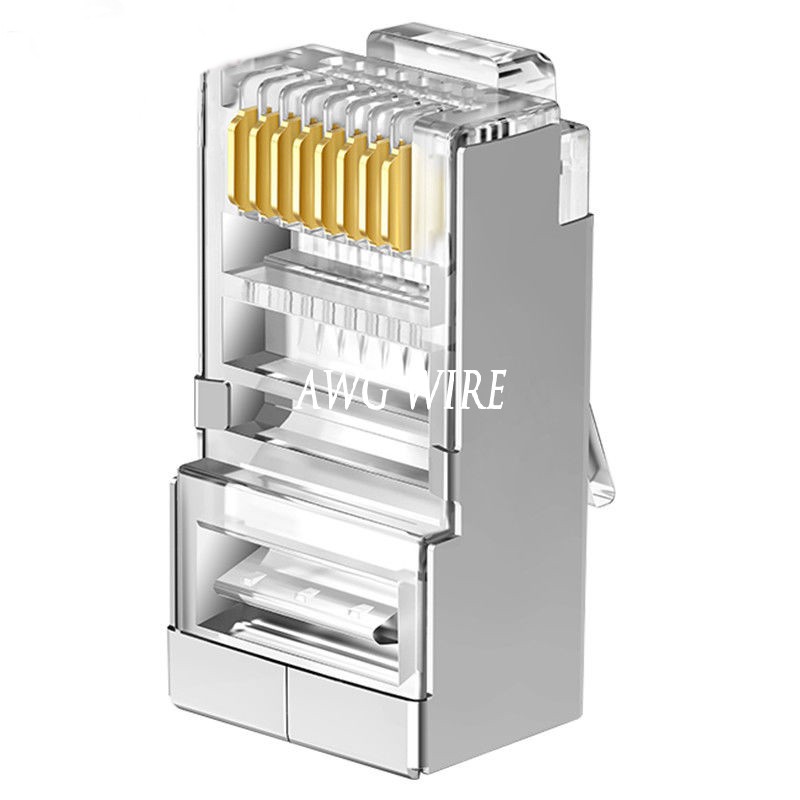

Large Image :  Shielded FTP 23AWG Cat6 RJ45 Modular Plug Network Cable Assembly OEM ODM

Product Details:

Product Details:

Place of Origin:China
Brand Name:OEM / ODM /
Certification:CE / ROHS / UL / ISO / ETL / Anatel
Model Number:RJ45 Male

Payment & Shipping Terms:

Minimum Order Quantity:1000 Pcs
Price:Negotiate
Packaging Details:100 Pcs Per PE Bag
Delivery Time:7-10 Working Day
Payment Terms:L/C, T/T,
Supply Ability:100000 Pcs Per Day
Contact Now

Shielded FTP 23AWG Cat6 RJ45 Modular Plug Network Cable Assembly OEM ODM

Description
Type:Rj45 BootsCategory:Cat5e/cat6
Material:PCColor:Customerized
Certification:ROHSService:OEM/ODM Custom Service
Connector:Molex Or Custom ConnectorsConnector B:Jack 8P8C T568A/B
Connector A:TAE - F Plug
High Light:

FTP Rj45 Modular Plug

,

Cat6 RJ45 Modular Plug

,

FTP rj45 cat 6 connector


Gold Plate 3 Prong FTP CAT6 23AWG Shielded Keyston Jack CAT6 connector Rj45 modular plug



FEATURE

Apply to Cat6 or cat6a cabling
T568A&T568B both wiring marked
4up 4down / 6up 2 down wire cross hole design for better data transferring (optional)
Transparent Housing color customize
Inner wire OD 1.0~ 1.1mm optional
Phosphor bronze contact plated with 80u nickel and 3~50u gold
Compatible with both 110 & Krone punch down tools
In compliance with UL E136825, IEC 60603-7 ,FCC Part 68 standard
High Quality Cat6 RJ45 Modular Plug
Housing
Polycarbonate (PC) from Japan brand
Terminal
Phosphor Bronze / Copper Alloy
2-Prongs / 3-Prongs
Gold Plating
Fu" / 3u" / 6u" / 15u" / 30u" / 50u"
Certificate
UL / RoHS / REACH
DATASHEET
Insert & withdraw Force
20N max.
Retention Strength
≥20pround(9.1kg)
Life Cycle
1500 mating cycles min.
Rated Current
250 VAC @2 Amps
Contact Resistance
20m Ω Max
<div class="magic-12" sty
