Product Details:
Product Details:
Payment & Shipping Terms:
|
| Pins:: | 8P, 8P | Application:: | Network, 23/24AWG Network Cable |
|---|---|---|---|
| Prongs:: | 2 Or 3 | Gender:: | Male |
| Number Of Cores:: | Eight Core | Gold Plating:: | 3μ |
| MOQ:: | 1000Pcs | Max Insulated Wire OD:: | Cat5e:1.0mm; Cat6: 1.1mm Or 1.2mm |
| High Light: | 24 AWG Network Cable Assembly,Anatel Network Cable Assembly,Eight Core RJ45 Through Connector | ||

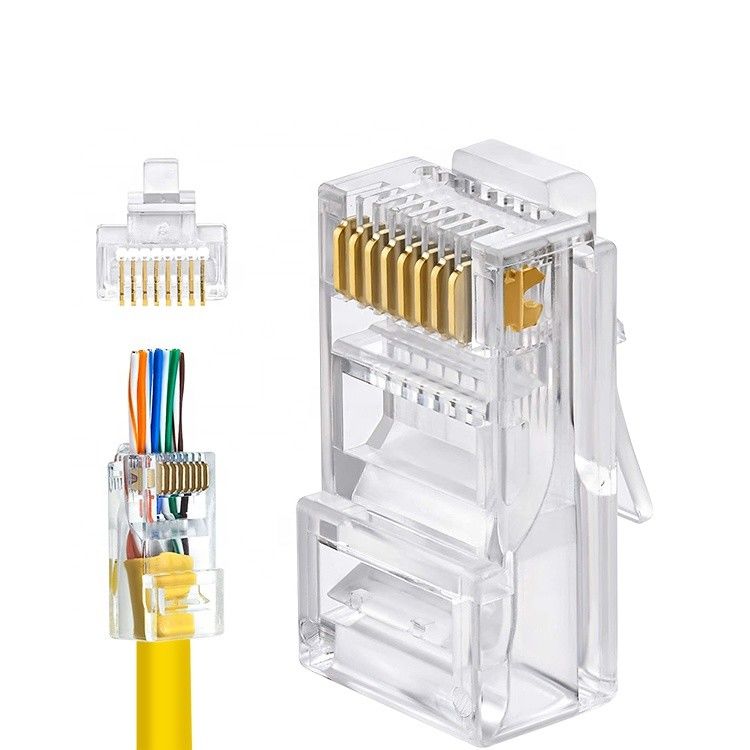

RJ45 Connector also named RJ45 pass though connector. It allow the wires to be inserted through the connector and out the front, this design is easily verify the proper wiring order(ANSI/TIA/EIA), speeding up the terminations and reducing scraps and waste. The EZ RJ45 Passthrough connectors allows you make ethernet cables in custom lengths. it is a cost effective solution for field construction of CCTV, Security Cameras, Routers, Switches.
Featres
* 1mm hole diameter for 24AWG cat5e cable, 1.1mm hole diameter for 23AWG cat6 cable.
* Works with solid or stranded cable.
* 1-50 μ gold plated contacts.
* 2 or 3 prong makes the contact more stable.
* Meets ANSI/EIA/TIA/TAA specifications.
* RoHS / FCC compliant.
* Copper Metal Shileded.
* Color: Clear/Transparent.
Specification
| Products | CAT5e / Cat6 connector |
| Type | UTP |
| Conductors/Position | 8/8 |
| Prongs | 2 or 3 |
| Gold plating thickness | 0μ, 1μ, 3μ, 6μ, 15μ,30μ, 50μ optional. |
| Max Insulated wire OD | Cat5e: 1.0mm; Cat6: 1.1mm or 1.2mm |
| Operating Temperation | -20°C to +75°C |
| Application | Solid or stranded 23/24AWG network cable |
Application
CCTV, Security Cameras, Routers, Switches, Printers, and Servers, etc.
FAQ
Q1: Are your trading company or manufacture ?
A: We are factory verified by SGS
Q2: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q6: What's your payment terms ?
A: We accept T/T, , Money Gram, Paypal.<br style="box-sizing: bor
