Product Details:
Product Details:
Payment & Shipping Terms:
|
| Model Number:: | UTP CAT6 | Conductor: | 0.57 |
|---|---|---|---|
| Application: | Telecommunication | Structure: | 4P Twisted Pair |
| Jacket: | PVC / LSZH | Conductor Material: | Soft Plain Copper/CCA |
| Conductor Diameter: | 23AWG | Length:: | 305M |
| High Light: | LSZH cat6 outdoor cable 1000 ft,23AWG cat6 outdoor cable 1000 ft,23AWG outdoor lan cable cat6 | ||
| Cable Overview |
Material Instruction
1.CCA or Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.
Physical Electrical Characteristics
Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 250 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.
DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-250MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.
Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000, ROHS.

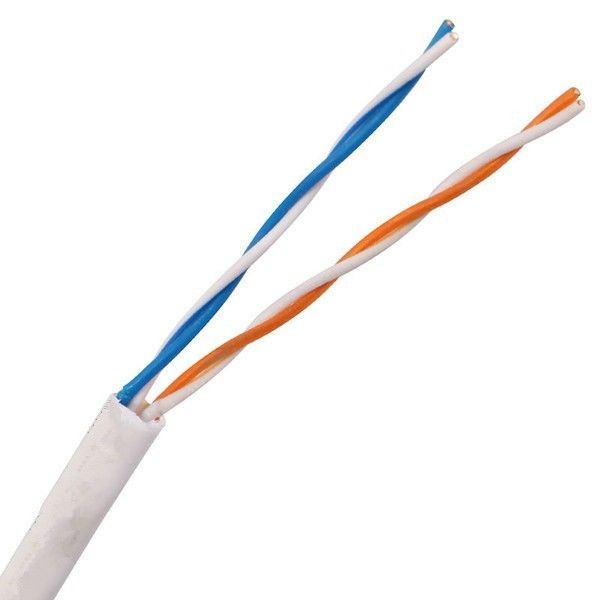

| Item Name | UTP CAT6 Lan Cable |
| TYPE | Cat6 |
| Construction | UTP |
| Conductor | CCA/23AWG Solid Copper |
| Number of Conductors | 8 |
| Insulation Material | HDPE |
| Cross Material | PP |
| Application | Lan cable |
| Jacket | PVC/LSZH |
| Rip cord | Nylon |
| Operating temperature | -20 ° C - +60 ° C |
| Standard | EIA/TIA 568B.2 & ISO/IEC 11801/ ASTM / BS |
