| Model Number:: | UTP CAT6 | Conductor: | 0.56 |
|---|---|---|---|
| Application: | Telecommunication | Structure: | 4P Twisted Pair |
| Jacket: | PE/PVC | Conductor Material: | Soft Plain Copper/CCA |
| Conductor Diameter: | 23AWG | Length:: | 305M |
| High Light: | 0.56mm Cat6 LAN Cable,Rj45 Cat6 LAN Cable,Rj45 underground cat6 cable | ||

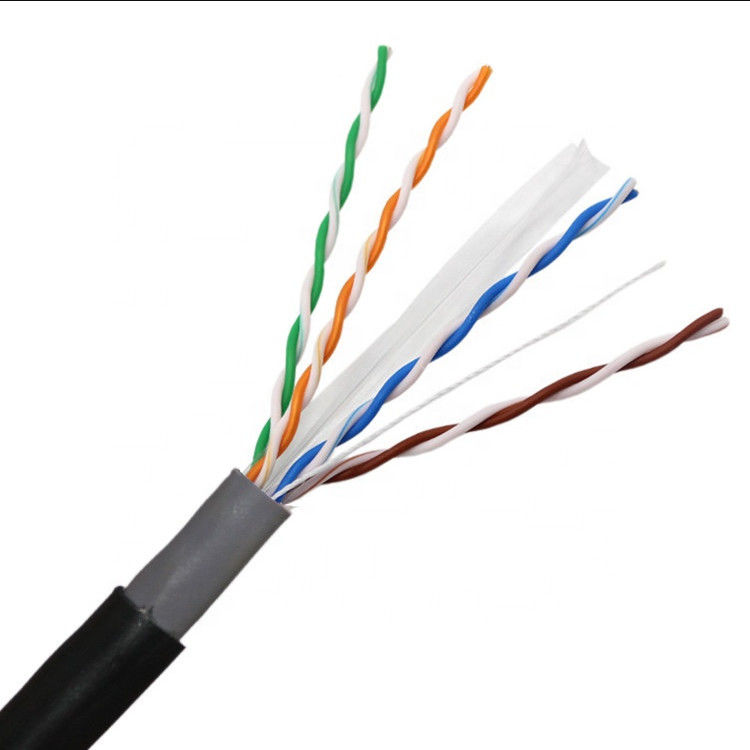

Outdoor Waterproof Underground Lan Cable Rj45 Cable Greased Gel Filled Or Jelly Filled Utp Cat6 F/Utp Cat6
| Cable Overview |
Material Instruction
1.CCA or 23AWG Soft Plain Copper
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PE Jacket , high-temperature resistance,long working life.
Physical Electrical Characteristics
Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 250 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.
DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-250MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.
Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B,UL444
Certificates ISO9001,14000, ROHS.
Applications
10Base-T4
100Base-TX
100Base-VG-ANYLAN
155Mbps ATM
622 Mbps ATM
1000Base-T
1000Base-TX
10Gbase-T
Transmission Performance for reference
<td style="margin: 0px; padding: 0px; width: 91px; height
Frequency MHz | Attenuation Max dB/100m | NEXT Min. dB/100m | PSNEXT Min. dB/100m | ELFEXT Min. db/100m | RL Min. dB | PHASE VELOCITY MIN(M/S) | PHASE DELAY MAX(ns/100m) |
