| Model NO: | GJYXCH | Strengthen Member:: | Metallic |
|---|---|---|---|
| Cover Material:: | PE | Water Blacking Tape:: | Yes |
| Type:: | Singlemode | Certification: | ISO9001,ROHS |
| Fiber Type: | G652D,G657A2 | Fiber Count: | 1/2/4 Core |
| High Light: | G652D fiber cable,Outdoor G652D fiber cable,G652D single mode fiber cable | ||

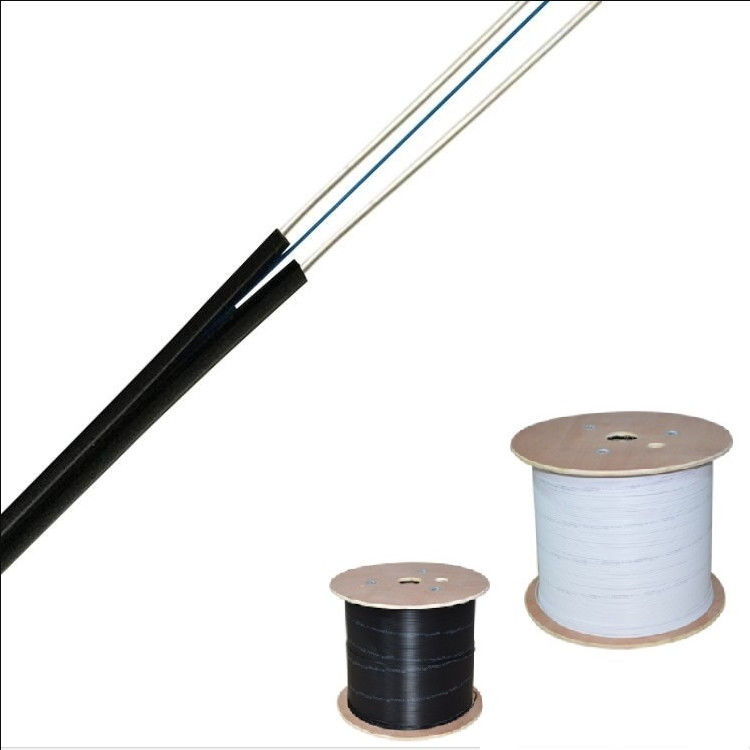

Self-supporting Outdoor Steel Messenger Wire FRP G657 FTTH Drop Fibra Optica 2 4 1 core fiber optic cable
Product Characteristics
• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
• Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure
• single metallic strength member makes optical cable having good tensile performance
• Optical cable has simple structure, light weight and strong practicability
• unique groove design, Easy peeled off and splice, simplify the installation and maintenance
• Low smoke halogen-free flame-retardant sheath, pro-environment
Application
• Indoor and outdoor wiring system
• FTTH, terminal system
• Indoor and outdoor shaft,building wiring
Structural Parameter
| Model No. | Count | Cable Size (mm) | Weight (kg/km) | Tension (N) | Crush (N/100mm) | Bending Radius Static / dynamic (mm) |
| GJYXCH-1Xn | 1 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
| GJYXCH-2Xn | 2 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | <span style="margin: 0px; padding: 0px; border: 0px currentColor; border-image: none; line-height: 18 |
