Product Details:
Product Details:
Payment & Shipping Terms:
|
| Model NO: | GYTC8S | Strengthen Member:: | Metallic |
|---|---|---|---|
| Cover Material:: | PVC/LSZH/PE/TPU | Cable Type:: | Outdoor Cable |
| Type:: | Fiber Optic Cable, GYTC8S | Certification: | ISO9001,ROHS |
| Fiber Type: | G652D,G657A2 | Fiber Count: | 24/48 |
| High Light: | GYTC8S armored fiber patch cable,armored fiber patch cable,GYTC8S fiber optic patch cord | ||

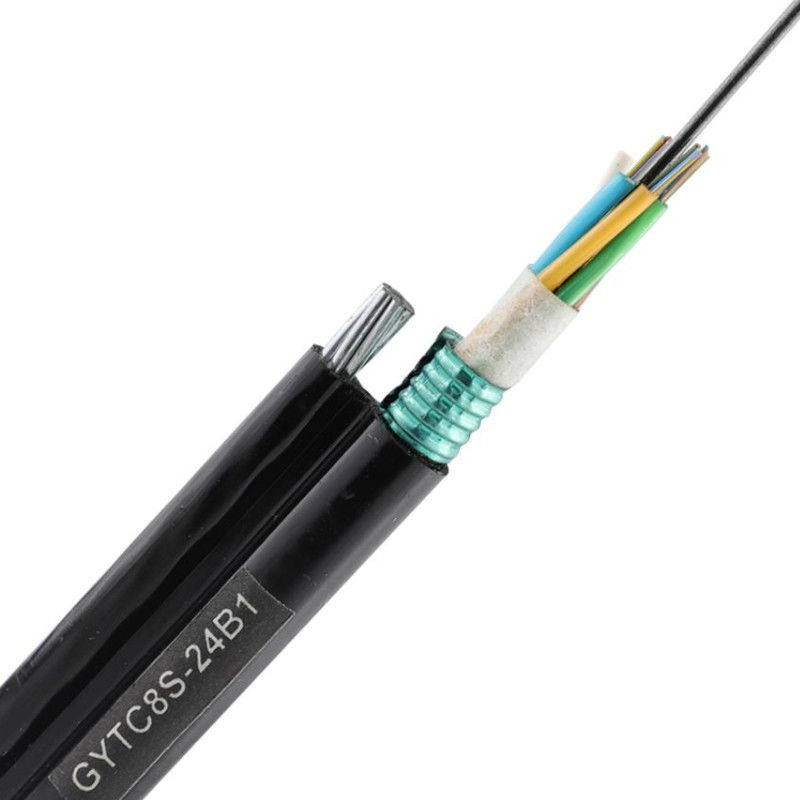

TOP Quality GYTC8S Armored Central Loose Tube 24 Or 48 Core Figure 8 Fiber Optic Cable
Packing &delivery:
1) Length: 3000 m/roll or other length is available according to lients request.
2) Packing: Wooden drum
3) Other packing available according to client's request
Delivery Detail: 7-15 days after receiving 30% T/T or L/C
Our other products:
1) 1-288core Fiber Optic Cable Indoor and outdoor,
2) network cables: CAT8,CAT7,CAT6A,CAT5E, UTP, FTP, SFTP cable,
10pair-200pair telephone cables
3) Coaxial cables RG6,RG59,SAT703,CCTV cameras cable, Fire Alarm cables, Alarm cables for security systems,
4) Network accessories: PON OUN, FTTH Kit, terminal box, patch panel ,POE Extender, surface box, Crimping tool, RJ45 Plug, media converter.....
5) We also supply second hand Machine+ Cable production technic
Certificate: UL(CMR), CPR, CE,RoHS, ISO
Product description:
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | '@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| '@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| '@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| '@1550nm | ≤0.22 dB/km | ≤0.23 dB/km | |||
| Bandwidth (Class A) | '@850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| '@1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Technical Parameters
<td style="margin: 0px; padding: 0px; width: 92px; text-align: center; line-height: inherit; font-family: inherit; fo| Cable Type | Fiber Count | tubes | fillers | Cable Weight kg/km | Tensile Strength Long/Short TermN | Crush Resistance Long/Short Term N/100mm | Bending Radius Static/Dynamic mm |
| GYTC8S-2~6 | 2~6 | 1 | 4 | 214 | 1000/3000 | 300/1000 | 10D/20D |
| GYTC8S-8~12 |
