| Number Of Conductor：: | ≥ 10 | Optic Cable Fiber:: | G652/G655/G657 |
|---|---|---|---|
| Optic Cable Type:: | Muti Mode | Min. Tensile Load:: | 500N(short Term), 600N(long Term) |
| Optic Cable Weight:: | 67kg/km | Optic Fibre Count:: | 2-24 Core |
| Operating Temperature:: | -40~+60℃ | Optic Cable Application:: | Duct, Aerial, Direct Burial |
| High Light: | 67kg/km Fiber Optic Cable,G657 Fiber Optic Cable,GYXTW Outdoor Fiber Optic Cable | ||
GYXTW Fiber Cable Outdoor Loose Tube Fiber Optic Cable Manufacturer Gyxtw G652D Fiber
2~24 Core Single Mode & Multimode Outdoor Armoured GYXTW Fiber Optic Cable
Description

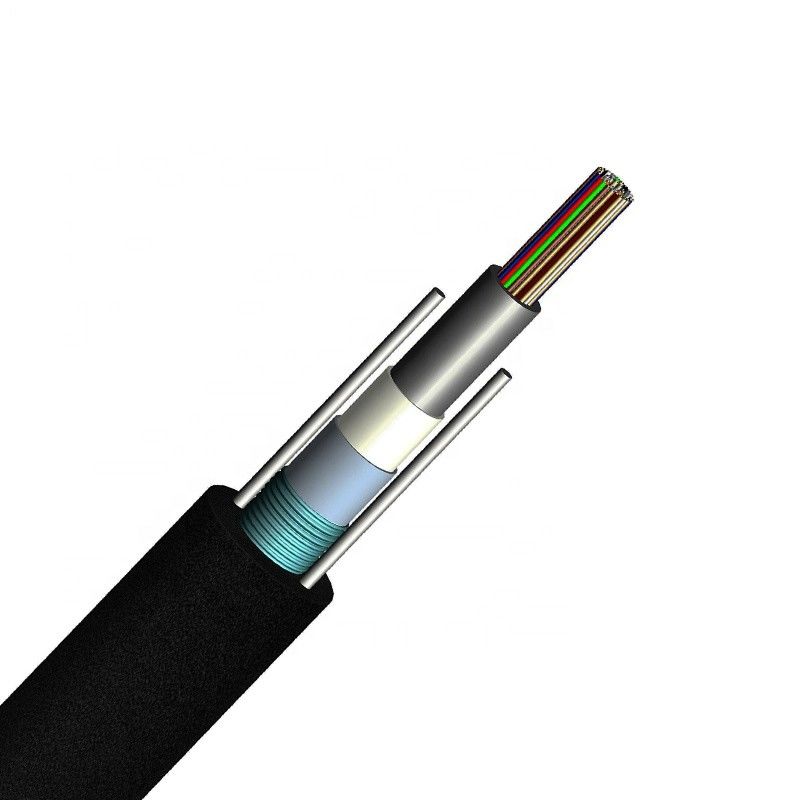

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
PSP enhancing moisture-proof
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Storage / Operating Temperature: -40℃~+70℃
Application
Usable in Duct / Aerial
Fiber Parameter
| No. | Items | Unit | Specification | |
| G.652D | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | <span style="box-sizing: border-box; margin: 0px; padding: 0px; border: 0px; font-style: inherit; font-varia | |||
