GYTY53 GYXTW53 Fiber Optical Cable 4 Core Direct Buried Duct Anti Mouse Biting

GYTY53 GYXTW53 Fiber Optical Cable 4 Core Direct Buried Duct Anti Mouse Biting

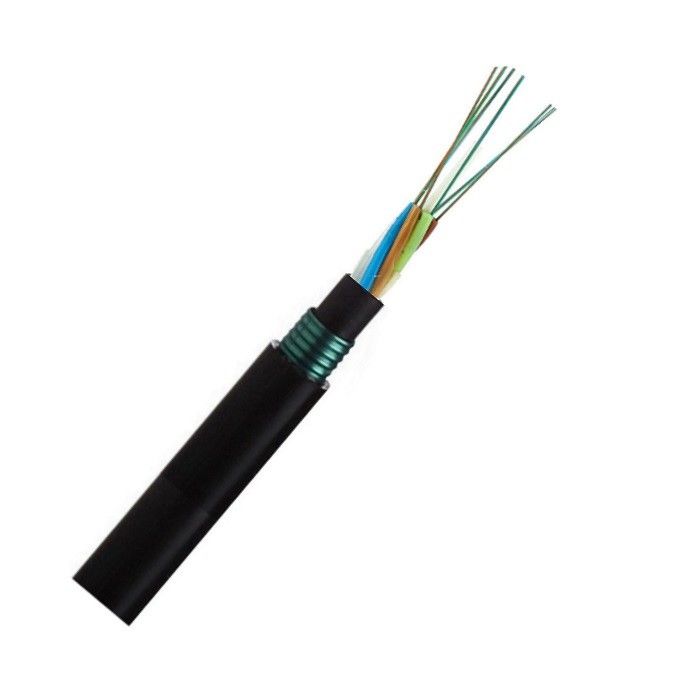

Large Image :  GYTY53 GYXTW53 Fiber Optical Cable 4 Core Direct Buried Duct Anti Mouse Biting

Product Details:

Product Details:

Place of Origin:China
Brand Name:OEM/ ODM/
Certification:UL/ CE/ ETL/ ROHS/ ANATEL
Model Number:GYTY53

Payment & Shipping Terms:

Minimum Order Quantity:1000 Meters
Price:Negotiation
Packaging Details:1000 Meters
Delivery Time:7~15Work Day
Payment Terms:L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:100000 Meters/Day

GYTY53 GYXTW53 Fiber Optical Cable 4 Core Direct Buried Duct Anti Mouse Biting

Description
Fiber Optical Core::G652D, G657A1, G657A2Color::Black/white
Product Name::GYTY53 Fiber Optic CableStructure::Stranded Fiber 22as
Jacket Sheath::PVC, LSZH, PE, PU, TPU, Ect.Fibra Optica::Singlemode/ Multimode GYTY53
Layout Ways::Aerial/underground/buried/pipelineNumber Of Conductor::2,4,6,8,10,12,,24,36,48,64,96,128,144 Cores
High Light:

GYXTW53 Fiber Optical Cable

,

Direct Buried Fiber Optic Cable

,

GYTY53 Fiber Optic Cable

GYTY53 GYTXW GYXTW53 4-288 Core Direct Buried Duct Anti Mouse Biting Fiber Optical Cable



Product Description

The fibers, 250um, are positioned in a loose tube made of a high modulus plastic.

the tubes are filled with a water-resistant filling compound.

a steel wire, sometimes sheathed with polyethylene (PE)for cable with high fiber count, located in the center of core as a metallic strength member.

tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

an aluminum polyethylene laminate (APL) is applied around the core of cable.

which is filled with the filling compound to protect it from water ingress.

then the core of cable is covered with a thin PE inner sheath.

after the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.



.............................................................................................
Good mechanical and temperature characteristics

Loose tube material itself has good water resistance and high strength.

The tube is filled with special ointment to protect the optical fiber.

Specially designed compact optical cable structure to effectively prevent casing retraction.

PE sheath has good UV radiation resistance

The following measures are taken to ensure the waterproofing performance of the cable:

Core reinforcing core of single steel wire

Special waterproof compound filled in loose casing

Full core filling

- coated aluminum strip (APL) moistureproof layer



The GYTY53 optical cable compliance with the YD/T901-2009 and IEC60794-1 standards.


Product Parameters





Modelfiber coresOD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm

GYTY536-2887-20mm70-3003500/7000N300/100015D/30D







<span style="box-sizing: border-box; margin: 0px; padding: 0px; border: 0px; font-style: inherit; font-variant: inher
