Product Details:
Product Details:
Payment & Shipping Terms:
|
| Model Number:: | ADSS-250M | Installation Tensile:: | 25KN |
|---|---|---|---|
| Application:: | Aerial | Fiber Count:: | 2-288 Cores |
| Arranty (Year):: | 2 | Material Of Jacket:: | Black Polyethylene (PE) |
| Trength Member:: | Fiberglass Reinforced Plastic (FRP) | Number Of Conductors:: | ≥ 10 |
| High Light: | 250m Span Fiber Optical Cable,Double Jacket Fiber Optic Cable,ADSS Fiber Optic Cable | ||

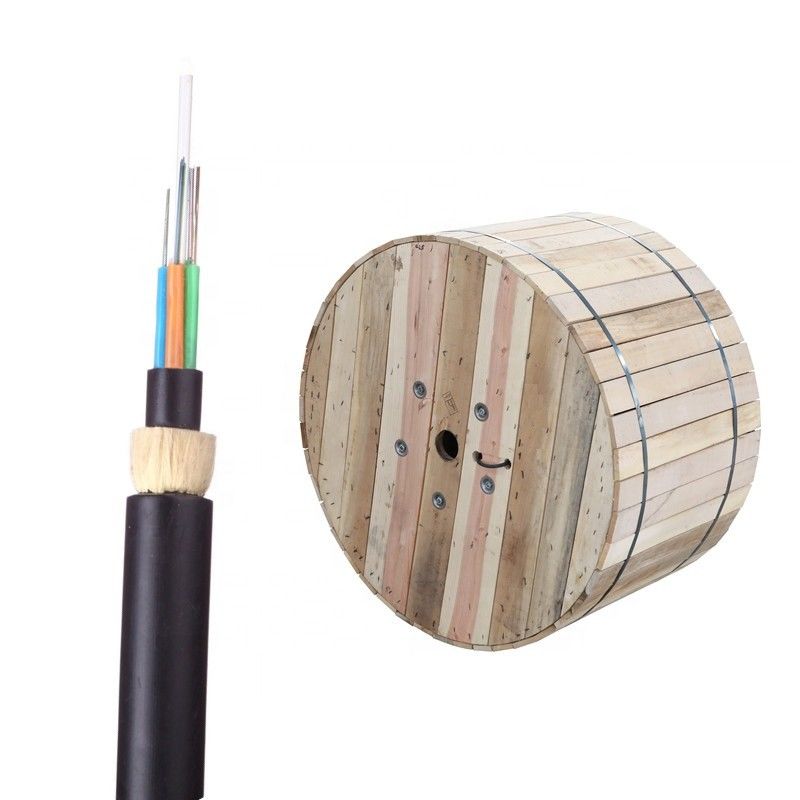

ADSS (All-Dielectric Self-Supporting) cable is ideal forinstallation in distribution as well as transmission environments, even when live-line installations are required.
Can be installed without shutting offthe power.
ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths and the largest span is over 200m.
Good performance oftensile strength and temperature.
The design life span is over 30 years.
Applications
Aerial
Structure and Technical Specifications ADSS-SJ(50-150M)
| Ref. Outer Diameter (mm) | Ref. Weight (kg/km) | Rec. Daily Max. (kN) | Max Allowable Working Tension (kN) | Break Strength (kN) | Strength Member CSA (mm2) | Modulus of (kN/mm2) | Heat Expansion Coefficient (x10- 6/K) | Suitable Span (NESC Standard,m) | ||||
| PE Jacket | AT Jacket | A | B | C | D | |||||||
| 11 | 110 | <span style="box-sizing: border-box; margin: 0px; padding: 0px; border: 0px; font-style: inherit; font-variant: inherit | ||||||||||
