G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable

G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable

Large Image :  G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable

Product Details:

Product Details:

Place of Origin:China
Brand Name:OEM/ ODM/
Certification:UL/ CE/ ETL/ ROHS/ ANATEL
Model Number:GJYXFDCH

Payment & Shipping Terms:

Minimum Order Quantity:1000 Meters
Price:Negotiation
Packaging Details:1Km/drum , fumigated wooden or iron drum as customer required
Delivery Time:7~15Work Day
Payment Terms:L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:100000 Meters/Day
Contact Now

G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable

Description
Number Of Conductors::4Length Of Reel::1Km/reel
Operating Temperature::- 40℃~ +60℃Disk Diameter::365mm
Sheath Material::PE/LSZHApplication::FTTH & Precast Pigta
Fiber Counts::4/6/8Type::Fiber Optic Cable
High Light:

GJYXFDCH Fiber Optic Cable

,

Aerial Fiber Optic Cable

,

G657A2 Fiber Optic Cable

Outdoor 4 Core FTTH Drop Cable G657A2 Self-supporting Aerial GJYXFDCH Fiber Optic Cable



Product Description



Application:

FTTH & precast pigtail


Product description:

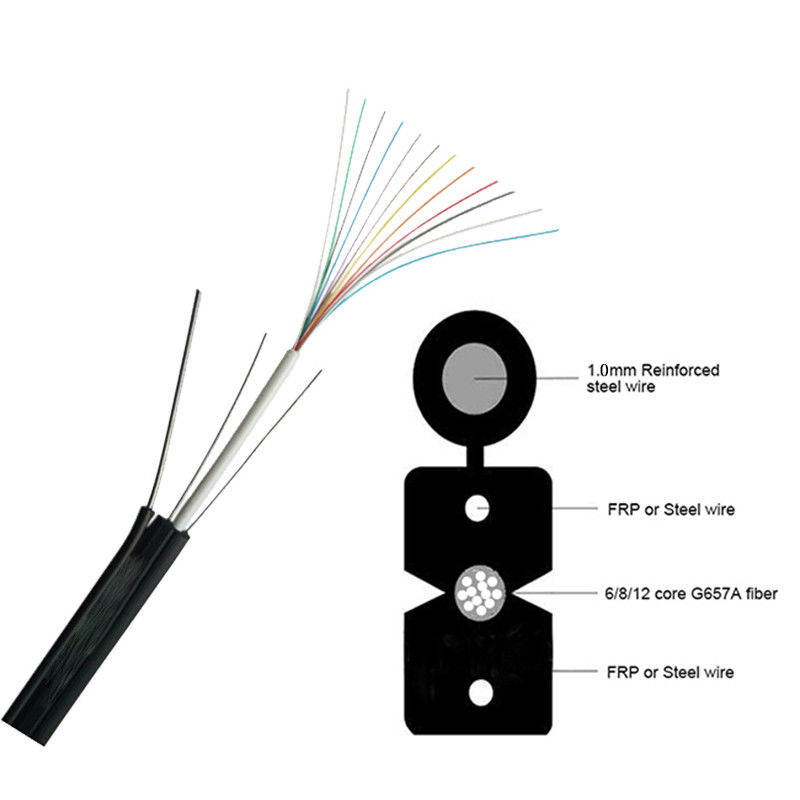

◇Optical fiber(s) in the center, dual paralleled steel wires (or FRP) as strength member, extruded LSZH sheath.
◇ The cable is small size and light with flute design which make cable easily separate the fibers by hands and convenient to be installed.

Operating temperature:

- 40℃~ +60℃
G657A2 Technical parameters
Item
Standard
Unit

Optical attenuation
1310nm
≤0.35
dB/km

1383nm
≤0.33
dB/km

1550nm
≤0.21
dB/km

1625nm
≤0.24
dB/km

Attenuation wavelength characteristic 1285nm～1330nm VS 1310nm
1360nm～1410nm VS 1383nm
1225nm～1575nm VS 1550nm
≤0.03
≤0.05
≤0.02
dB/km

Dispersion
1288nm～1339nm
|D|≤3.4
<div class="magic-25" style="box-sizing: content-box; margin: 0px; padding: 5px 10px; border: 0px; font: inherit; vertical-align: baseline; min-height: 28px;
