48 96 144 Core Single Mode ADSS Fiber Optic Cable

48 96 144 Core Single Mode ADSS Fiber Optic Cable

Large Image :  48 96 144 Core Single Mode ADSS Fiber Optic Cable

Product Details:

Product Details:

Place of Origin:China
Brand Name:OEM/ ODM/
Certification:UL/ CE/ ETL/ ROHS/ ANATEL
Model Number:ADSS

Payment & Shipping Terms:

Minimum Order Quantity:1000 Meters
Price:Negotiation
Packaging Details:3000m/wooden drum Drum size:95*95*70cm GW:325KG
Delivery Time:7~15Work Day
Payment Terms:L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:100000 Kilometer/Kilometers per Month
Contact Now

48 96 144 Core Single Mode ADSS Fiber Optic Cable

Description
Model Number::ADSSNumber Of Conductors::4
Color::BlackOuter Sheath::PE/LSZH
Application::Telecom/networkPacking::Wooden Durm
Fiber Count::2-144coreSheath::Single/double
High Light:

Single Mode ADSS Fiber Optic Cable

,

144 Core Fiber Optic Cable

,

96 Core Fiber Optic Cable

4 6 8 12 24 48 96 144 core single mode ADSS fiber optic cable

Product Description
Fiber color coding and tube color coding
48 96 144 Core Single Mode ADSS Fiber Optic Cable 0
48 96 144 Core Single Mode ADSS Fiber Optic Cable 148 96 144 Core Single Mode ADSS Fiber Optic Cable 2
Description

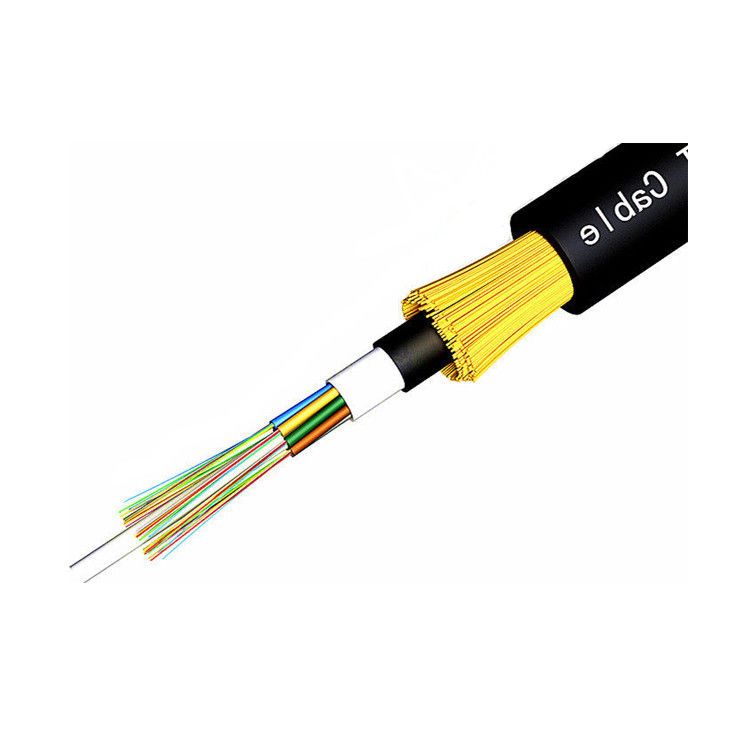

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned in a loose tube made of a high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (fiber reinforced plastic) as a nonmetallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound . It is covered with thin PE(polyethylene) inner sheath. After stranded layer of Aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT(anti-tracking) outer sheath.
Specification
Model Number
ADSS
Number of Conductors
24
Application
Aerial fiber cable
Function
Delivery signal light
Certification
ADSS pass ISO9001,UL, TIL, CE
Sheath material
PE /AT ,Single/Double(Optional)
Fiber type
OS1/OS2,OM1,OM2,OM3,OM4(Optional)
Length per roll
2~4 km/drum
Fiber count
2core to 288 core
Strength member
FRP
Technical Parameters
Model
fiber cores
OD
(outer dia.)
Weight
kg/km
Tensile
Strength Long
/Short Term
<div class="magic-34" style="box-sizing: content-box; margin: 0px; padding: 5px 10px; border: 0px; font: inherit; vertical-align: baseline; min-height: 18px; width:
