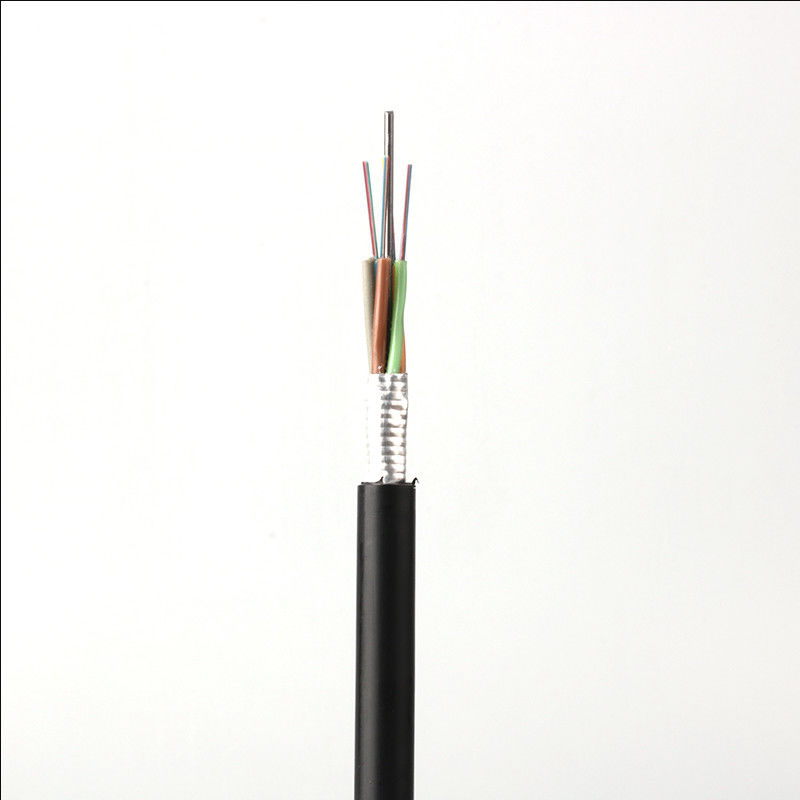

Crush Resistance GYTS Armored Fiber Optic Patch Cable With Flexibility

Crush Resistance GYTS Armored Fiber Optic Patch Cable With Flexibility

Large Image :  Crush Resistance GYTS Armored Fiber Optic Patch Cable With Flexibility

Product Details:

Product Details:

Place of Origin:China
Brand Name:OEM/ ODM/
Certification:UL/ CE/ ETL/ ROHS/ ANATEL
Model Number:GYTS

Payment & Shipping Terms:

Minimum Order Quantity:1000 meters
Price:Negotiation
Packaging Details:1000 Meters
Delivery Time:3-7Work Day
Payment Terms:L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:100000 Meters/Day

Crush Resistance GYTS Armored Fiber Optic Patch Cable With Flexibility

Description
Model NO:GYTSStrengthen Member::Metallic
Cover Material::PEWater Blacking Tape::Yes
Type::SinglemodeFiber Count::2-144 Cores
Certification:ISO9001,ROHSFiber Type:G652D,G657A2
High Light:

G657A2 armored fiber optic patch cable

,

GYTS armored fiber optic patch cable

,

G657A2 armoured outdoor cable


Wholesale Crush Resistance And Flexibility 2-144 Cores GYTS Optic Fiber Light-armored Cable For Outdoor



Fiber optic cable price per meter
GYTS is made up of loose tube, central strength member, plastic coated steel tape and PE sheath. GYTS is same as GYTA except that we use the Plastic coated steel strip(PSP) not the APL. Loose tube is made of a high modulus plastic. The tubes are both filled with the water-resistant gel compound. We also use the phosphating steel wire as the central stength member here. The material of the sheath is PE, also can do the LSZH .
Fiber Parameters

2-96 fibers
98-288fibers
Max. Tension (N)
Short-term
1500
3000
Max. Tension (N)
Long-term
600
1000
Max. Crushing Resistance (N/100mm2)
1000
Temperature range(°C)
-40°C-- +70°C
Min. Bending Radius(mm)
Install
20D
Min. Bending Radius(mm)
Static
10D
<td colspan="1" rowspan="1" sty


G.652
G.655
50/125&mu;m
62.5/125&mu;m
Attenuation (+20℃)
@850nm


&le;3.0 dB/km

@1300nm
