Product Details:
Product Details:
Payment & Shipping Terms:
|
| Model NO: | GYTA53 | Strengthen Member:: | Metallic |
|---|---|---|---|
| Cover Material:: | PE | Temperature:: | -40℃ -- +70℃ |
| Type:: | Singlemode | Fiber Count:: | 4-288 Cores |
| Certification: | ISO9001,ROHS | Fiber Type: | G652D |
| High Light: | ISO9001 direct burial single mode fiber,GYTA53 direct burial single mode fiber,GYTA53 direct buried fiber cable | ||

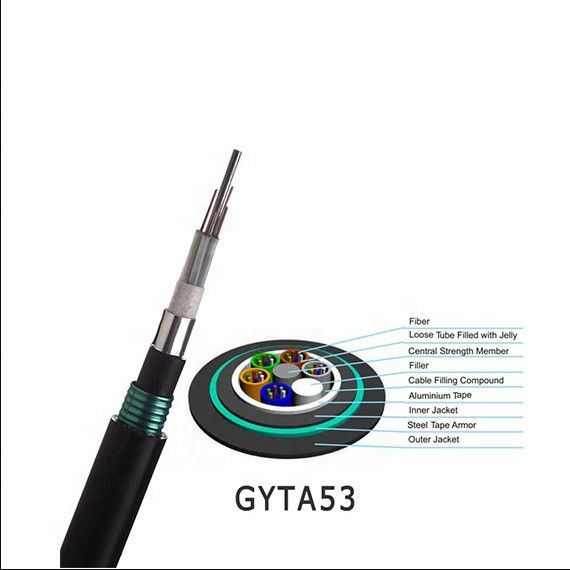

GYTA53 outdoor Direct Buried underground 4/6/8/12/24/48/72/96/144/288 Core Fiber Optical Cable
Armored Loose Tube Double Jacket/Double Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.
Features
Loose tube gel-filled construction for superiorfiber protection.
Double jacket single armored(GYTY53) and Double jacket double armored
(GYTA53) for rodent pr.otection and direct burial.
UV and moisture-resistant design
Applications
Directburied, DuctorUnderground conduits.
Backbone.
Structure and Technical Specifications
<td heigh| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fibers per Tube | Max No. of (Tubes+ fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~30 | 13.2 | 162 | 6 | 5 | 3000 | 1000 | 3000 | 1000 |
| 32~48 | 13.8 | 175 | 8 | |||||
