G652d G657a GYFTY FTTH Indoor Outdoor Fiber Optic Cable Self Supporting

G652d G657a GYFTY FTTH Indoor Outdoor Fiber Optic Cable Self Supporting

Large Image :  G652d G657a GYFTY FTTH Indoor Outdoor Fiber Optic Cable Self Supporting

Product Details:

Product Details:

Place of Origin:China
Brand Name:OEM/ ODM/
Certification:UL/ CE/ ETL/ ROHS/ ANATEL
Model Number:FTTH

Payment & Shipping Terms:

Minimum Order Quantity:10000 meters
Price:Negotiation
Packaging Details:1000 Meters
Delivery Time:3-7Work Day
Payment Terms:L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:100000 Meters/Day

G652d G657a GYFTY FTTH Indoor Outdoor Fiber Optic Cable Self Supporting

Description
Key Words::Fiber CableJacket Material::LSZH HDPE
Application::Outdoor OverheadFiber Type::G657A1
Product Name::Optic Fiber CableCertification::CE/ROHS/ISO9001
Color:Black/White/Customized ColorMessenger Wire::Steel Or FRP
High Light:

G652d  indoor outdoor fiber optic cable

,

G657a indoor outdoor fiber optic cable

,

G652d fiber optic patch cable


Factory Price G652d G657a Self Supporting Single Mode GYFTY 1 2 4 Core FTTH Indoor Outdoor Fiber Optic Drop Cable



Product description:

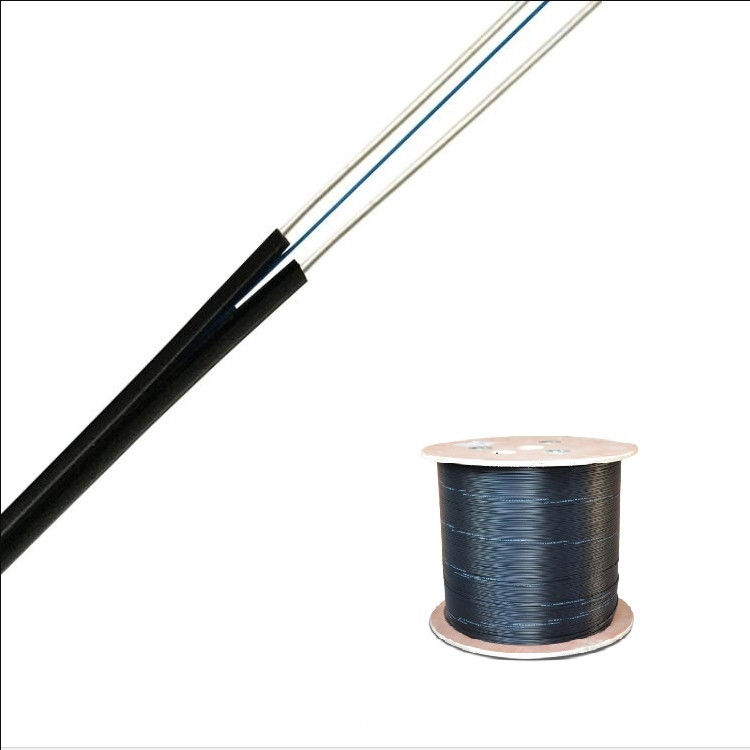

The FTTH indoor cable is centered on the optical communication unit, with two parallel non-metallic reinforcing elements (FRP) placed on both sides, and finally, a black or colored low-smoke halogen-free sheath is extruded.

Features:
· Special bend-resistant fiber to provide greater bandwidth and enhance network transmission characteristics;
· Two parallel FRPs make the cable have good compression resistance and protect the fiber;
· The cable has a simple structure, light weight and strong practicability;
· Unique groove design, easy to peel, easy to connect, simplify installation and maintenance;
· Low-smoke, halogen-free flame retardant jacket, environmentally friendly.



Product Description
Fiber count
1/2/4/6/8/12
Color Of fiber
Blue Orange Green Brown
Fiber Type
G652D/G657A1/G657A2
Strength member
Steel wire/FRP/KFRP
Supporting messenger wire
1.0MM*x1 steel wire
Outer sheath
LSZH Lower smoke zero halogen frame retardant & UV Anti
Cable Diameter dimensions
2.0( Height) × 5.0W ± 0.1 mm(width)
Operation temperature range
-20 ℃ to + 70 ℃
Installation temperature range
-20 ℃ to + 60 ℃
Transport and storage temperature range
-20 ℃ to + 70 ℃
Tension Load (N)
Short term :800N Long term :500N
Crush Load(N)
Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius
30 x OD
Minimal operation bending radius
15 x OD
Cable marking
The marking length 1meter apart , as required



G652d G657a GYFTY FTTH Indoor Outdoor Fiber Optic Cable Self Supporting 0

G652d G657a GYFTY FTTH Indoor Outdoor Fiber Optic Cable Self Supporting 1G652d G657a GYFTY FTTH Indoor Outdoor Fiber Optic Cable Self Supporting 2

FAQ



1.What is your MOQ?

Could be coordinated if you have detail requirements.



2.How about your delivery date?
Delivery date is about 3-5days, it depends on the order quantity.

3.Can you supply sample fo
