| Conductor Material:: | BC/CCS/CCA | Conductor Size:: | 0.81mm |
|---|---|---|---|
| Braiding:: | Customized | Insulation:: | CCTV Camera Cables |
| Jacket:: | PVC | Name:: | RG59 Coaxial Cable |
| Model Number:: | CATV Satellite | ||
| High Light: | CCS Coaxial TV Cable,Rg59 Coaxial TV Cable,Rg59 coax cable for internet | ||

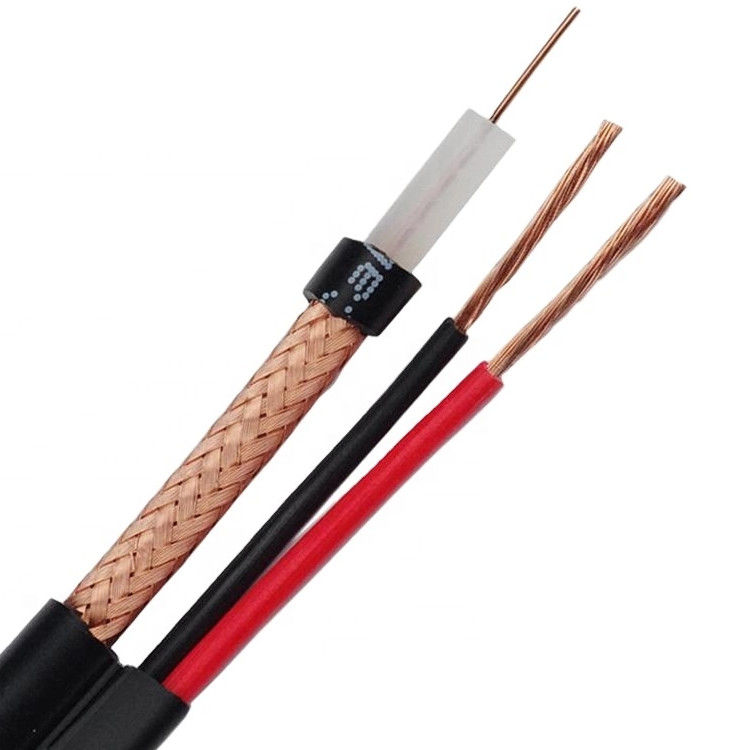

Al Foil 0.81mm Pure Copper CCS Conductor Rg59 2c Cctv Cable With Power For Security System Communication Cables
Product structure
Conductor :Solid bare copper
Insulation: Solid PE
Braids:Foil + CCA 48P/64P/80P/96P/112P/128P/144P/160P Braids
Jacket:polyvinyl chloride / FR-PVC
Electrical characteristics
Impedance:75±3OHM
Capacitance:66±3pF/m
Max attention: 20°C
Flammability grade: CMX, CM
Operating temperature: -25~70°C or -40~70°C
Insulation resistance: 5000MOHM/km
Reference GB/T14864-93 Standards.
Description for RG59 with power cable
Mainly used for the distribution and access of electronic communication equipment,
RF transmitter unit of communication system, building cabling and CATV;
the most striking features are broadband and high speed; currently,
also widely used in the multimedia transmission field; conforms to RG59.
