| Number Of Conductors:: | 1 | Conductor Material:: | Copper,CCS |
|---|---|---|---|
| Jacket:: | PVC Jacket And ROSH,LSZH | Length:: | 100m/roll According To Custom Need |
| Type:: | Coaxial | Guarantee Period:: | 10-15 Years |
| Lead Time:: | 10-15 Working Days | Place Of Origin:: | Guangdong, China, China |
| High Light: | RG11 Coaxial TV Cable,RG58 Coaxial TV Cable,Aerial Coaxial TV Cable | ||

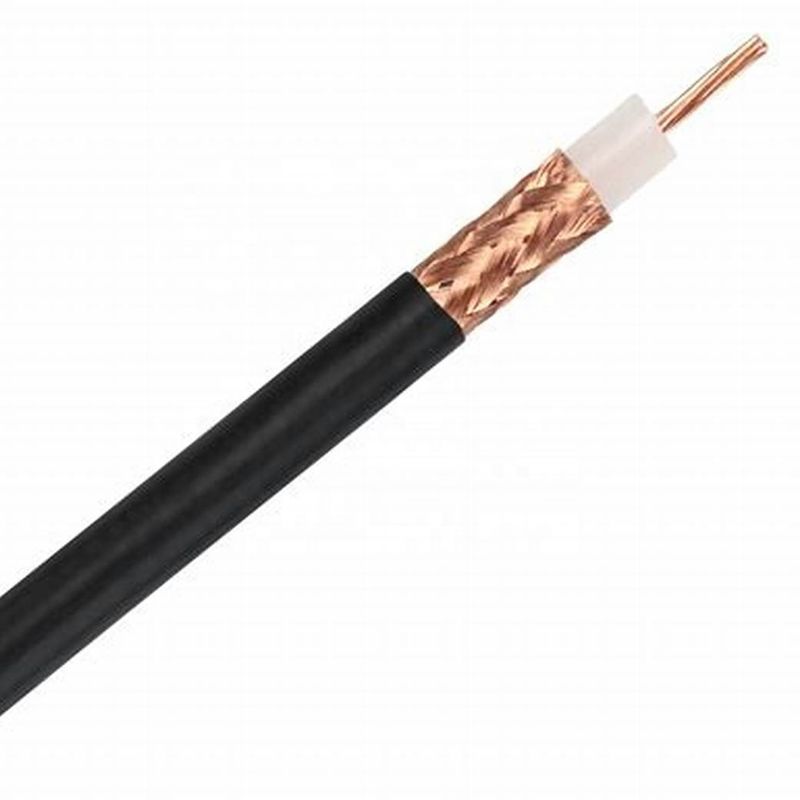

Factory Price Bare Copper Coaxial Cable RG11 RG59 RG6 RG58 For TV Aerial Cable
Specifications:
1,RG6:1.02CCS+4.57FPE+AL Foil+Al Braids+6.9PVC
2,CE.ROHS,ISO
3,MOQ:30KM
4,Price:Factory price
5,Lead time:15 days
Construction:
Inner Conductor: 1.02mm Copper Clad Steel (22%)
Dielectric: 4.57± 0.05mm Foam PE
Shield: Bonded Aluminum PET Aluminum
Braid Coverage: 0.16mm *16*4(60%)AL-Mg Alloy
Jacket: 6.85± 0.05 mm PVC(75 degree UL)
Jelly/APD: Per Customized
Options:
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.
Electrical Specifications:
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)
| Attenuation Performance [@68 ° F. (20 ° C)] | ||
| Frequency(MHz) | Maximum (dB/100ft) | Maximum (dB/100m) |
| 5 | 0.58 | 1.90 |
| 55 | 1.60 | 5.25 |
| 211 | 2.87 | 9.41 |
| 250 | 3.10 | 10.16 |
| 300 | 3.43 | 11.25 |
| 350 | 3.72 | 12.20 |
| 400 | 4.00 | 13.11 |
| 450 | 4.26 | 13.97 |
| 500 | 4.55 | 14.92 |
| 550 | 4.71 | 15.44 |
| 600 | 5.05 | 16.56 |
| <span | ||
