Product Details:
Product Details:
Payment & Shipping Terms:
|
| Product Name:roduct Name:: | Rg6 Coaxial Cabl | Application:: | CCTV/CATV |
|---|---|---|---|
| Insulation:: | Foam PE | Jacket:: | PVC/PE/LZSH |
| Length:: | 100m 305m 1000ft 500m | Color:: | Whit/Black |
| Packing:: | Wooden Drum/Carton | Shield:: | Al Foil+braiding |
| High Light: | Rg6 Coaxial TV Cable,305m Coaxial TV Cable | ||
Coax Cable For Internet Rg6 CCTV Coaxial Cable Rg6 For Communication

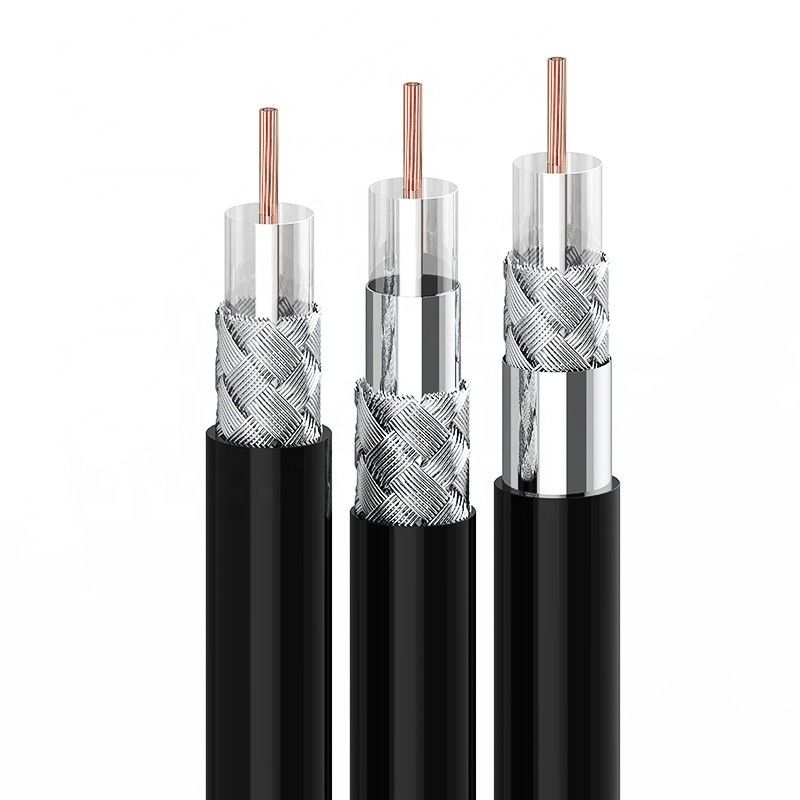

Product structure
Conductor :Solid bare copper
Insulation: Solid PE
Braids:Foil + CCA 48P/64P/80P/96P/112P/128P/144P/160P Braids
Jacket:polyvinyl chloride / FR-PVC
Electrical characteristics
Impedance:75±3OHM
Capacitance:66±3pF/m
Max attention: 20°C
Flammability grade: CMX, CM
Operating temperature: -25~70°C or -40~70°C
Insulation resistance: 5000MOHM/km
Reference GB/T14864-93 Standards.
Description for RG58U with power cable
Mainly used for the distribution and access of electronic communication equipment,
RF transmitter unit of communication system, building cabling and CATV;
the most striking features are broadband and high speed; currently,
also widely used in the multimedia transmission field; conforms to RG58U.
Product Description
