Product Details:
Product Details:
Payment & Shipping Terms:
|
| Model Number:: | RG6 75 Ohm Coaxial Cable | Jacket Material:: | PE PVC LSZH |
|---|---|---|---|
| Conductor Material:: | CCS/CCA/PURE COPPER | Length:: | Availabale |
| Color:: | Requirements | Type:: | Coaxial |
| Operating Temperature:: | 20 C~+70 | Application:: | Cabling System |
| High Light: | ISO9001 CCTV Coaxial Cable,RG6 CCTV Coaxial Cable | ||
CCTV Coaxial Cable AL/CU Braided RG6 RG6 75 OHM Coaxial Cable For Antenna Or Communication

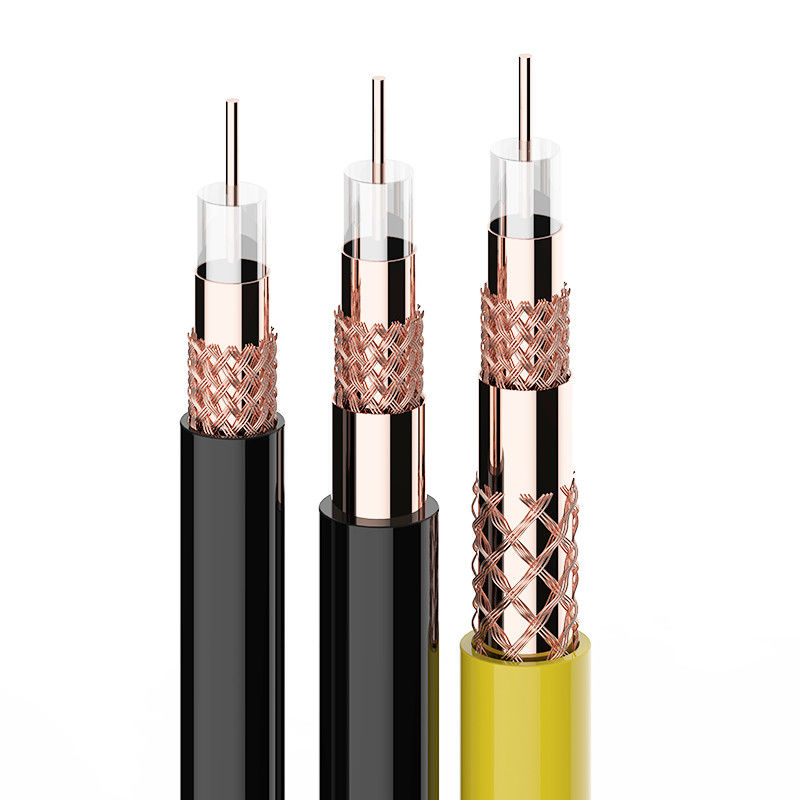

Product structure
Conductor :Solid bare copper
Insulation: Solid PE
Braids:Foil + CCA 48P/64P/80P/96P/112P/128P/144P/160P Braids
Jacket:polyvinyl chloride / FR-PVC
Electrical characteristics
Impedance:75±3OHM
Capacitance:66±3pF/m
Max attention: 20°C
Flammability grade: CMX, CM
Operating temperature: -25~70°C or -40~70°C
Insulation resistance: 5000MOHM/km
Reference GB/T14864-93 Standards.
Description for RG58U with power cable
Mainly used for the distribution and access of electronic communication equipment,
RF transmitter unit of communication system, building cabling and CATV;
the most striking features are broadband and high speed; currently,
also widely used in the multimedia transmission field; conforms to RG58U.
