RoHS Bonded Aluminum PET Shield RG59 Coaxial TV Cable

RoHS Bonded Aluminum PET Shield RG59 Coaxial TV Cable

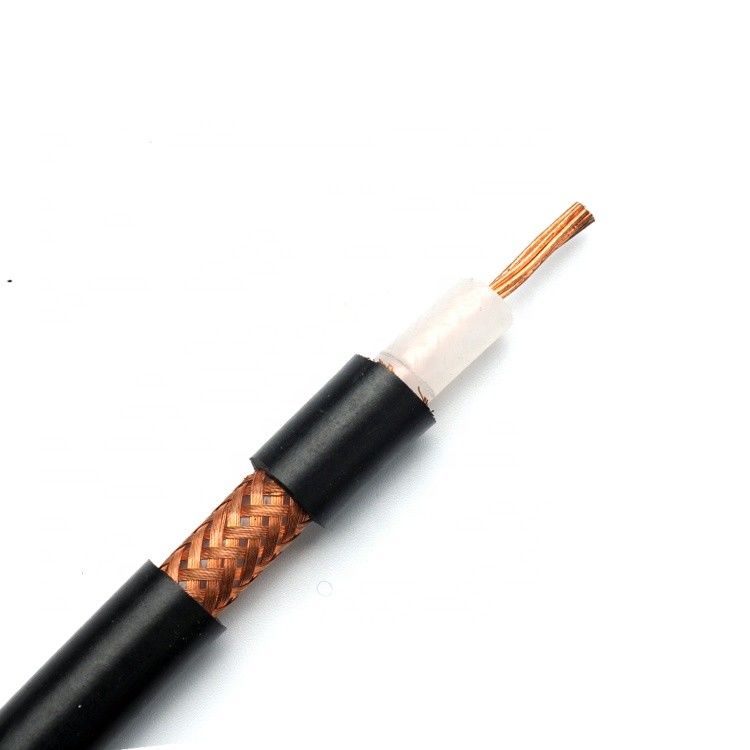

Large Image :  RoHS Bonded Aluminum PET Shield RG59 Coaxial TV Cable

Product Details:

Product Details:

Place of Origin:Guangzhou,China
Brand Name:OEM/ ODM/
Certification:CE/ RoHS/ ETL/ ISO
Model Number:RG59

Payment & Shipping Terms:

Minimum Order Quantity:20000 Meters
Price:Negotiation
Packaging Details:100 Meters/ Box, Coil/Plastic Reel/Wooden reel/Carton/pallet
Delivery Time:12-15 Work Days
Payment Terms:L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:200000 Meters per Week
Contact Now

RoHS Bonded Aluminum PET Shield RG59 Coaxial TV Cable

Description
Model Number::RG59Length::Custom Length
Conductor Diameter::0.65mmInsulation::FPE/SPE
Number Of Conductor::1Color::Black/White
Jacket::PVC/PEConductor Material::Bare Copper/CCS
High Light:

RG59 Coaxial TV Cable

,

RoHS Coaxial TV Cable


2021 Made in China Coaxial Cable TV RG59 Cable Types TV Aerial Cable



Construction and Dimension
Item
RG59
RG58
RG6
RG7
RG11
Material of inner conductor
Cu
Cu
Cu
Cu
Cu
Diameter of inner conductor(mm)
0.81±0.02
19*0.20±0.01
1.00±0.02
1.29±0.02
1.63±0.02
Material of dielectric
Foam PE
PE
Foam PE
Foam PE
Foam PE
Diameter of Dielectric(mm)
3.66±0.15
2.95
4.57±0.01
5.72
7.11
Material of Shield
ALfoil+Al brading
BC/TC braiding
ALfoil+Al brading
ALfoil+Al brading
ALfoil+Al brading
Coverage
40%--95%
95%
40%--95%
40%--95%
<div class="magic-8" style
