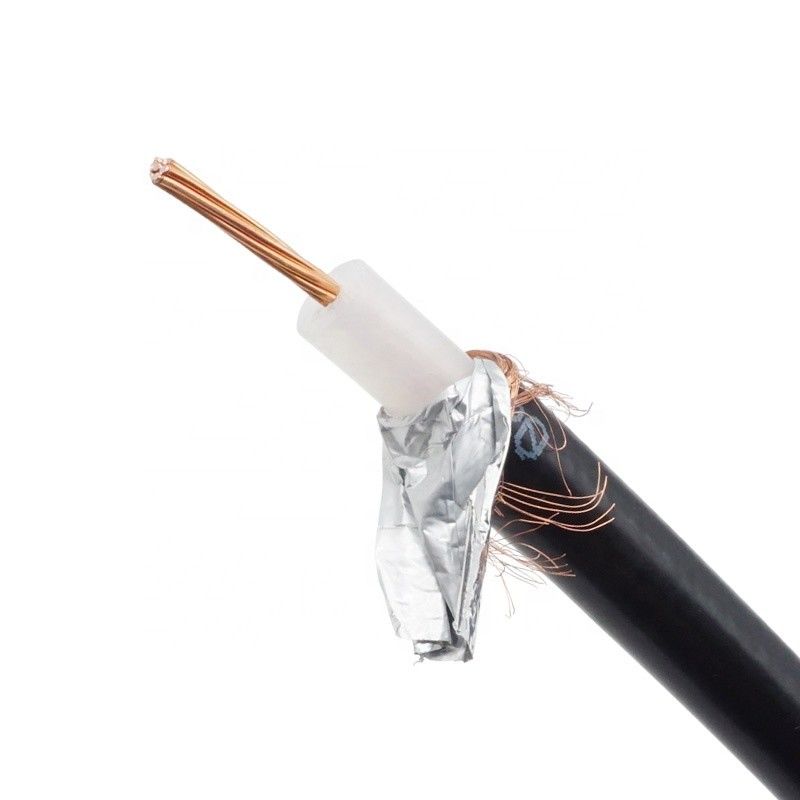

RG6 RG7 RG11 Coaxial TV Cable CCS CCA Conductor For Internet

RG6 RG7 RG11 Coaxial TV Cable CCS CCA Conductor For Internet

Large Image :  RG6 RG7 RG11 Coaxial TV Cable CCS CCA Conductor For Internet

Product Details:

Product Details:

Place of Origin:Guangzhou,China
Brand Name:OEM/ ODM/
Certification:CE/ RoHS/ ETL/ ISO
Model Number:RG6

Payment & Shipping Terms:

Minimum Order Quantity:20000 Meters
Price:Negotiation
Packaging Details:100 Meters/ Box, Coil/Plastic Reel/Wooden reel/Carton/pallet
Delivery Time:12-15 Work Days
Payment Terms:L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:200000 Meters per Week
Contact Now

RG6 RG7 RG11 Coaxial TV Cable CCS CCA Conductor For Internet

Description
Number Of Conductor::1Length::OEM
Jacket::PVCConductor Material::Bare Copper/CCS
Application::NetworkingColor::Black
Conductor Diameter::0.81mm -1.02mmShield::Al Foil+braiding
MOQ::6100meters
High Light:

RG11 Coaxial TV Cable

,

CCA Coaxial TV Cable

,

1.02mm Coaxial TV Cable


RG58/RG59/RG6/RG7/RG11 Coaxial Cable CCS/CCA Conductor Coax Cable For Internet



1.Mainly Used in the Building Correspondence Synthesis Wiring System the Work Area

Correspondence Leading-out Terminal and between the Connection Distribution Frame Wiring.

2. The Housing Synthesis Wiring System’s User Correspondence Leading-out Terminal Arrives at Exile between Coils’ wiring.



Construction and Dimension
Item
RG59
RG58
RG6
RG7
RG11
Material of inner conductor
Cu
Cu
Cu
Cu
Cu
Diameter of inner conductor(mm)
0.81±0.02
19*0.20±0.01
1.00±0.02
1.29±0.02
1.63±0.02
Material of dielectric
Foam PE
PE
Foam PE
Foam PE
Foam PE
Diameter of Dielectric(mm)
3.66±0.15
2.95
4.57±0.01
5.72
7.11
Material of Shield
ALfoil+Al brading
BC/TC braiding
ALfoil+Al brading
ALfoil+Al brading
ALfoil+Al brading
<div class="magic-15" style="box-sizing: content-box; margin: 0px; padding: 5px 1
