| Number Of Conductor:: | 1 | Length:: | 100m/200m/300m/customized |
|---|---|---|---|
| Jacket:: | Waterproof Material/PVC/PE | Conductor:: | 19X0.20mm |
| Application:: | CATV | Screen:: | 112X0.10mm |
| Outer Jacket:: | 5.0mm PVC | Cross Section:: | 1X0.60mm |
| Insulation:: | 2.95mm | ||
| High Light: | RG58 Copper Coaxial Cable,UL1655 Copper Coaxial Cable,OEM Coaxial TV Cable | ||
UL1655 Coaxial RG58 HD CCTV Camera Cable Coax Copper Cable Assembly
Specifications:
1,RG6:1.02CCS+4.57FPE+AL Foil+Al Braids+6.9PVC
2,CE.ROHS,ISO
3,MOQ:30KM
4,Price:Factory price
5,Lead time:15 days

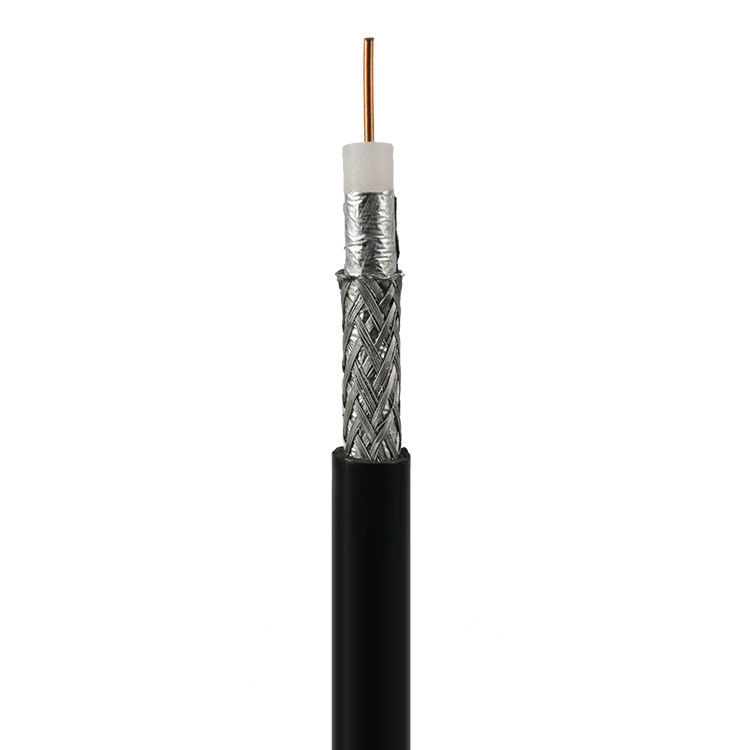

Construction:
Inner Conductor: 1.02mm Copper Clad Steel (22%)
Dielectric: 4.57± 0.05mm Foam PE
Shield: Bonded Aluminum PET Aluminum
Braid Coverage: 0.16mm *16*4(60%)AL-Mg Alloy
Jacket: 6.85± 0.05 mm PVC(75 degree UL)
Jelly/APD: Per Customized
Options:
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.
Electrical Specifications:
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)
Applications:
1) Land mobile and cellular radio
2) Earth station antenna jumper cables
3) Jumpers for equipments room and antenna connection
4) Military data links
5) VLF, AM and FM radio broadcast systems
6) Point to point terrestrial microwave
7) Airborne and shipboard radar systems
8) Tactical, restoration and portable communication system
Technological Process
Testing Instrumentation
Delivery</spa
