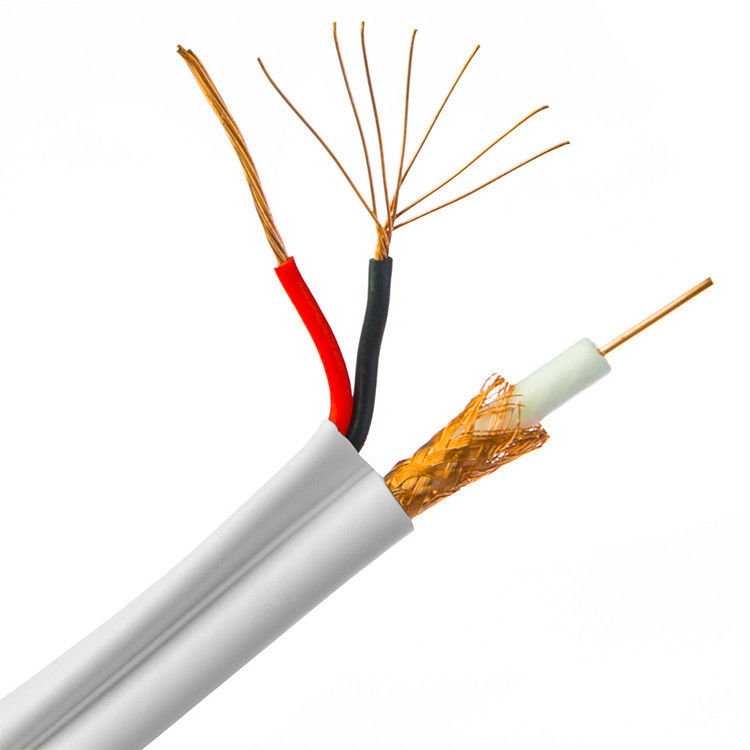

RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera

RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera

Large Image :  RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera

Product Details:

Product Details:

Place of Origin:Guangzhou,China
Brand Name:OEM/ ODM/
Certification:CE/ RoHS/ ETL/ ISO
Model Number:RG59

Payment & Shipping Terms:

Minimum Order Quantity:30000 meters
Price:Negotiation
Packaging Details:100m/roll , 200m/roll , 305m /roll , 500m/roll
Delivery Time:12-15 Work Days
Payment Terms:L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:200000 Meters per Week
Contact Now

RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera

Description
Length::100m/rollApplication::CCTV System, Satellite
Jacket::New PVCConductor Material::CU
Color::White ,BlackNumber Of Conductor::1
2C::2*18AWG CCARG59::0.81CCS+3.66 FPE+AL FOIL+ 48/0.12 AL+PVC
High Light:

75OHM Siamese Coaxial Cable

,

RG59 Siamese Coaxial Cable

,

CCTV Camera Siamese Coaxial Cable


RG59+2C Power 75OHM Siamese RG59 Coaxial cable With Power Cable For CCTV Camera



Products Description:

Item
Material
Specification
Conductor
BC/CCS
0.81mm(20AWG,0.032'')
Dielectric
FPE
3.66mm(0.144'')
1st Shield

Al Foil
100%, Overlap>2mm
2nd Shield
BC or Al Braiding
40%-95%
53%
3rd Shield

Al Foil
-
100%, Overlap>2mm
4th Shield

BC or Al Braiding
-
-
40%

Jacket PVC/PE
Outer Diameter
6.1mm(0.24'')
6.1mm(0.24'')
6.73mm(0.265'')
Nominal Thickness
0.81mm(0.032'')
0.76mm(0.030'')
0.86mm(0.034'')
Messenger

Steel
1.30mm
Dielectric Adhesion

>20N/5cm

Breaking Strength of Messenger

82kgf

Impendence

75±3 Ohm

Capacitance
50±3.0 nf/KM
