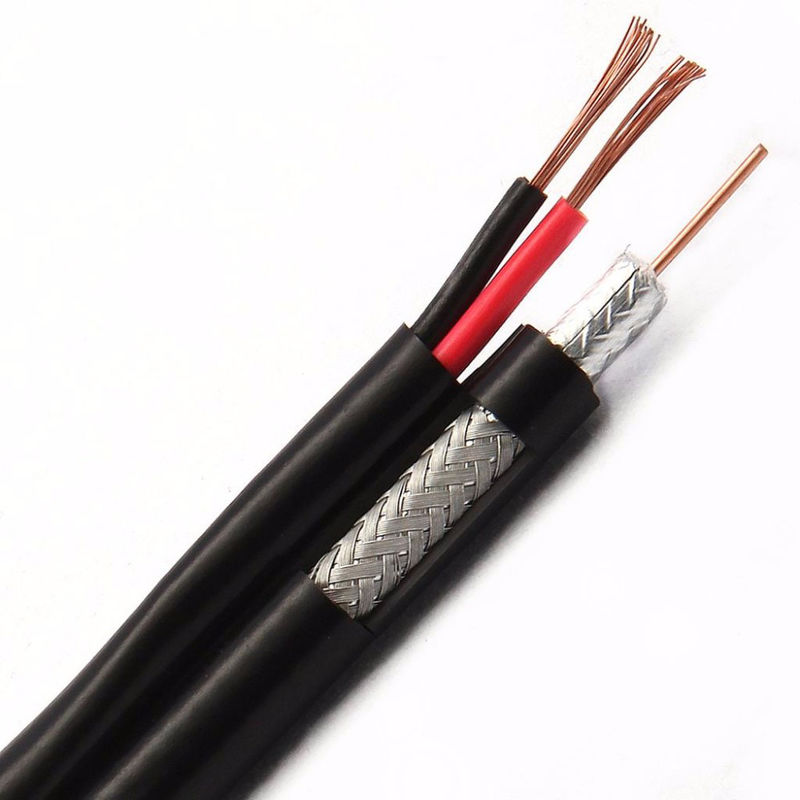

20AWG CCTV Camera Coaxial TV Cable With 2 Cores 305m

20AWG CCTV Camera Coaxial TV Cable With 2 Cores 305m

Large Image :  20AWG CCTV Camera Coaxial TV Cable With 2 Cores 305m

Product Details:

Product Details:

Place of Origin:Guangzhou,China
Brand Name:OEM/ ODM/
Certification:CE/ RoHS/ ETL/ ISO
Model Number:RG59

Payment & Shipping Terms:

Minimum Order Quantity:20000 Meters
Price:Negotiation
Packaging Details:100 Meters/ Box, Coil/Plastic Reel/Wooden reel/Carton/pallet
Delivery Time:12-15 Work Days
Payment Terms:L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:200000 Meters per Week
Contact Now

20AWG CCTV Camera Coaxial TV Cable With 2 Cores 305m

Description
Number Of Conductor::1Conductor Diamter::20AWG
Jacket Material::PVCPacking::305m/carton
Braid::95% Braid Siamese Cable CCAApplication::CCTV System, Satellite
Length::305m/152mConductor Material::Pure Copper
High Light:

20AWG Coaxial TV Cable

,

2 Core Coaxial TV Cable




CCTV Camera Cable Coaxial Cable RG59 With 2cores Power Coaxial Cable 75Ohm 305m

Products Description



RG59 (Basic construction)75 ohm

STANDARD SHIELD
TRI-SHIELD
QUAD-SHIELD

CONDUCTOR
MATERIAL
BC/CCS
BC/CCS
BC/CCS
Nom.Dia.
20AWG
20AWG
20AWG

DIELECTRIC
MATERIAL
Foam PE
Foam PE
Foam PE
Nom.Dia.
3.66mm
3.66mm
3.66mm


SHIELD
MATERIAL
Al Foil+Al Braiding
Al Foil+Al Braiding+Al Foil
(Al Foil+Al Braiding)*2
COVERAGE
40%-95%
40%-95%
35%-53%


JACKET
MATERIAL
PVC/PE
PVC/PE
PVC/PE
Nom.Thick.
0.80mm
0.80mm
0.86mm
Nom.Dia.
6.10mm
6.10mm
6.70mm
<div class="text-titl
Tag:

RG11 Coaxial TV Cable,

RG58U Coaxial TV Cable,

CCS rg59 cable with power,
