Product Details:
Product Details:
Payment & Shipping Terms:
|
| Conductor Material:: | BC/CCS/CCA | Conductor Size:: | 0.8mm |
|---|---|---|---|
| Braiding:: | Customized | Insulation:: | CCTV Camera Cables |
| Jacket:: | PVC | Name:: | RG59 Coaxial Cable |
| Model Number:: | CATV Satellite | ||
| High Light: | CE approval CCS rg59 cable with power,CE approval CCTV rg59 cable with power,CE approval CCTV rg 59 coaxial cable | ||

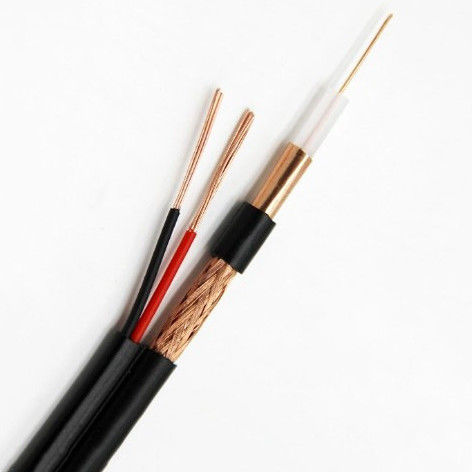

RG59 CCTV cables security camera/antenna TV RG59 coaxial cable power wire
RG59 with power cable
0.64Cu/CCS+3.66SPE+90%Braiding Coverage+6.0PVC+0.5mm2 power/0.75mm2 power
0.81Cu/CCS+3.66FPE+Bonded foil+90% Braiding Coverage+6.0PVC+0.5mm2 power/0.75mm2 power
Description for RG59 with power cable
Mainly used for the distribution and access of electronic communication equipment, RF transmitter unit of communication system, building cabling and CATV; the most striking features are broadband and high speed; currently, also widely used in the multimedia transmission field; conforms to RG59.
Features
| Specificaitons | ||||||
| Physical dimensions | ||||||
| component | Standard-shield | Tri-shield | Quad-shield | |||
| inchs | mm | inchs | mm | inchs | mm | |
Nominal center conductor diameter | 0.032 | 0.81 | 0.032 | 0.81 | 0.032 | 0.81 |
Nominal diameter over dielectric | 0.144 | 3.66 | 0.144 | 3.66 | 0.14 | 3.66 |
Nominal diameter over first shield | 0.151 | 3.84 | 0.151 | <span style="margin: 0px; padding: 0px; border: 0px currentColor; border-image: none; line-height: 24px; font-family: arial, helvetica, sans-serif; font-size: 16px; font-style: inherit; font-variant: inherit; font-weight: inherit; vertical-align: baseline; box-sizing: c | ||
