Product Details:
Product Details:
Payment & Shipping Terms:
|
| Wire Material:: | 0.62mm Bare Copper | Insulation:: | Foamed PE |
|---|---|---|---|
| Shiled:: | Al Foil | Application:: | Local Communication Cable, LAN Cable |
| Color:: | Customized | Sheath Material:: | LSZH/PVC |
| Transport Length:: | 500M | Jacket Color: | Yellow / Gray / Blue Or As Required |
| High Light: | 22AWG CAT8 LAN Cable,CAT8 LAN Cable,22AWG cat8 ethernet cord | ||

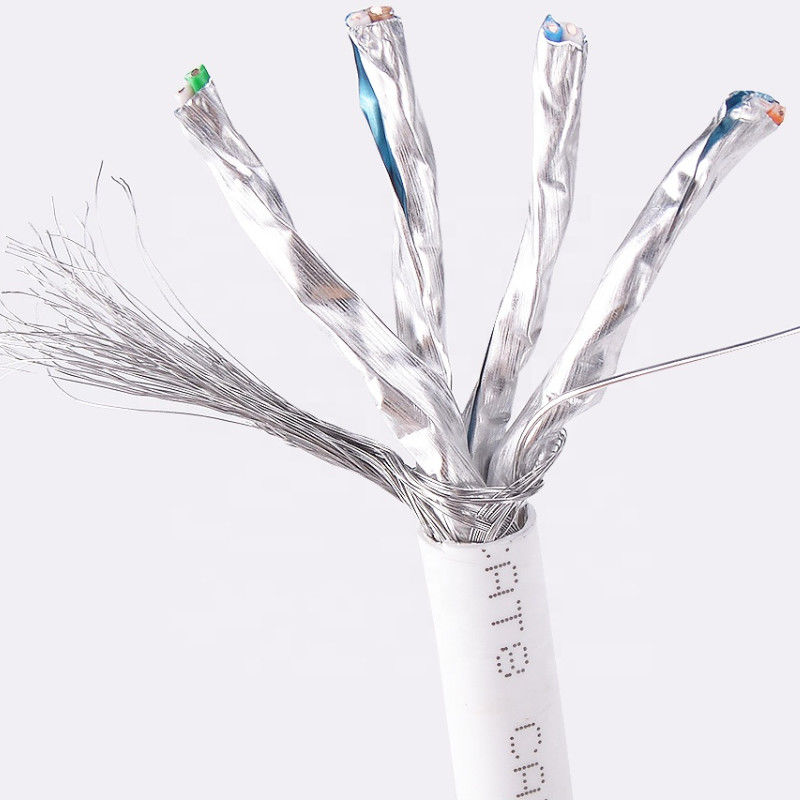

22AWG 4pair solid bare copper or CCA LSZH high speed network cable CAT7 SFTP CAT8 S/FTP CAT8 lan cable
| Meterial Description |
| SURELINK SFTP CAT8 | ||||
| Description: Product Description: 4P S/FTP CAT8 22AWG LSZH Reference standard: ANSI/EIA 568.2-D & ISO/IEC 11801 Rated temperature: 60℃ | Application: 100 Base-TX 100 Base-T 1000 Base-T(Gigabit Ethernet) 1000 Base-TX 155Mbps ATM 622Mbps ATM 10Gb Ethernet | |||
| Data Sheet | ||||
| Structure | Construction | S/FTP |
| |
| Number of pairs | 4Pairs | |||
| Conductor | AWG | 22AWG | ||
| Material | Solid copper | |||
| Conductor dimension (mm) | 1/0.65±0.01 | |||
| Insulation | Insulation Material | FOAM PE | ||
| Insulation dimension(mm) | 1.55±0.05 | |||
| Pairs | 1 | White/Blue | ||
| 2 | White/Orange | |||
| 3 | White/Green | Electrical Characteristics | 1-2000MHZ | |
| 4 | White/Brown | Max. delay skew ≤ 13.5ns/30 m | ||
| Filler | Filler material | N/A | Max. conductor resistance 2.4<span style="margin: 0px; padding: 0px; border: 0px currentColor; border-image | |
