High Speed Shielded Twisted Pair SSTP 305m CAT7 LAN Cable

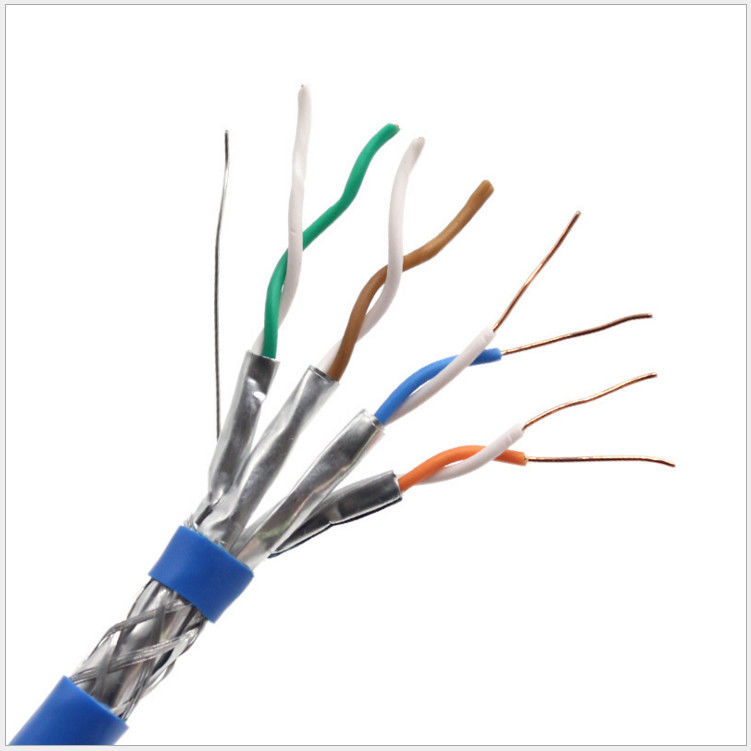

Large Image : High Speed Shielded Twisted Pair SSTP 305m CAT7 LAN Cable

Product Details:

Place of Origin:	China
Brand Name:	OEM/ ODM/
Certification:	UL/ CE/ ETL/ ROHS/ ANATEL
Model Number:	CAT7 S/STP

Payment & Shipping Terms:

Minimum Order Quantity:	50 Boxes
Price:	Negotiation
Packaging Details:	305 meter/drum
Delivery Time:	12-15 work days
Payment Terms:	L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:	3000 Boxes/Day

Contact Now

High Speed Shielded Twisted Pair SSTP 305m CAT7 LAN Cable

Description

Wire Material::	0.58mm Bare Copper	Insulation::	Foamed PE
Shiled::	Al Foil	Application::	Local Communication Cable, LAN Cable
Color::	Customized	Sheath Material::	LSZH/PVC
Transport Length::	1000ft (305m)	Insulation:	HD-PE
High Light:	305m CAT7 LAN Cable , SSTP CAT7 LAN Cable , 305m cat 7 ethernet cable

High Speed best price shielded Twisted Pair Network Cable Cat7 SSTP Lan network Cable with 305m 4 Pair 8 Core

Superiority

1.Top sale cat5e,cat 6,cat7 patch cord cable

2.Best price

3.Delivery on time cat5e,cat 6,cat7 lan cable,rj45 patch cord cable

4.High quality and good service

Specifications

Place of Origin:Guangdong, China (Mainland)

Brand Name:YILIAN

Model Number:4pairs

Type:cat5e,cat 6,cat7 cable,telephone cable

Number of Conductors:8

Color:blue/grey/black/white/green/red or Customized

Jacket:PVC,LSOH,LSZH

Package:305m/box or Customized

Insulation:PE/HDPE

Length:305m/box or 100m/box or customized

Conductor material:BC/CCA/CCS/CU/CCAM/CCC

Certificate:CE/ROHS/FC

ITEM	SSTP CAT7 CAT7A ETHERNET CABLE
Conductor	Solid bare copper (OFC)
AWG	22AWG/23AWG customized
Conductor Diameter(mm)	0.583±0.02
Insulation	Foam-skin PE
Insulation Average Thicknes	0.419mm(Min at any point:0.40mm)
Jacket	PVC/LSZH
Sheath Average Thickness	0.05mm(Min at any point:0.40mm)
Sheath Diameter	7.4±0.3mm
Elongation	Min.100%
Tensile Strength	Min.1.407 Kg/mm2
Aging at 100℃ for 168Hrs	Min.elongation retention:50%;Min.tensile strength retention:75%
Rip cord	Including
Color Code	Blue/White-Blue ;Orange/White-Orange ;Green/White-Green ;Brown/White-Brown
Spark Test	1050 V ac
Dielectric Strength	2500 V dc/3 seconds
Insulation Resistance Test	Min.150 MΩ/Km
Conductor Resistance	Max.9.38Ω/100m at 20℃
Resistance Unbalance	Max. 2%
<div class="magic-12" style="font: inherit; margin: 0px; padding: 5px 10px; border: 0px currentColor; border-image: none; width: 181px; vertical-align: baseline; min-height: 18px; box-sizing: content-box; f
