| Model Number:: | CAT6 Patch Cord | Color:: | 9 Colors Available |
|---|---|---|---|
| Fire Rating:: | CMX/ CMG/ CM/ CMR/ CMP | Connector:: | Gold-Plated |
| Type: | Cat 6 | Jacket: | PVC/PE/LSOH |
| Color: | Blue/grey/white/black/orange Etc.,blue/white/gray | Application: | Indoor/outdoor |
| High Light: | 23awg Cat6 Patch Cord,CCA Cat6 Patch Cord,CCA 23awg cat6 cable | ||

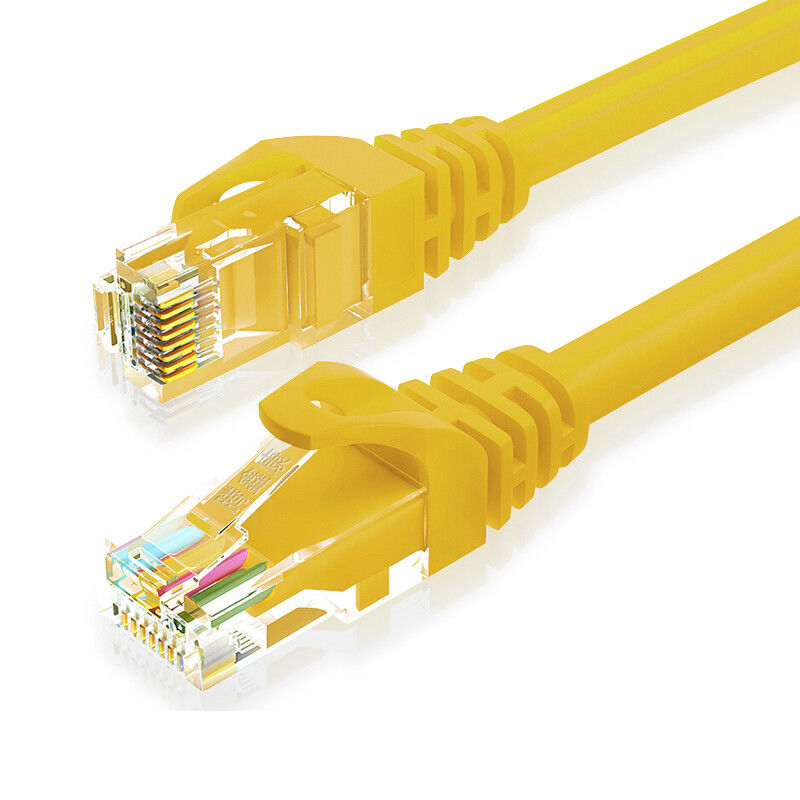

Low price high quality pure copper or CCA UTP CAT6 Network Patch Lead
Product Description
Cat6 UTP copper network patch cord for computer device is an ultra-high quality category 6 unshield twisted pai r(utp) molded plenum patch cable.Utp is accepted for residential and general commercial installation. In SURELINK, you can get true cat6 performance with component certified cat6 patch cables.
Flat cables fit easily between cramped spaces improving the look of your home or office because they are flat and easy to hide. These flat cables are a perfect fit under carpets, up walls, and even behind furniture.
Not all Ethernet cable is created equally. What's the difference, and how do you know which you should use? Let's look at the technical and physical differences in Ethernet cable categories to help us decide.
Ethernet cables are grouped into sequentially numbered categories (“ cat ”) based on different specifications; sometimes the category is updated with further clarification or testing standards (eg 5e, 6a). These categories are how we can easily know what type of cable we need for a specific application. Manufacturers are required to adhere to the standards, which makes our lives easier.
What are the differences between the categories and how can you know when to use unshielded, shielded, stranded, or solid cable? Keep reading f or “cat”-like enlightenment.
<t
| Conductor Material: | Bare Copper 99% | DC resistance Max.: | 93.8 Ω/km |
| Conductor Construction: | Stranded copper 7*0.20 mm | Insulation resistance Min.: | 100 MΩ/km |
| Gauge: | 23 AWG | Dielectric strength: | AC-500V 1 min no breakdown |
| Conductor Nom.O.D: | 0.61 mm | DC resistance unbalance: | Max 2% |
| Insulation Material: | HDPE | Input impedance: | 100±15Ω @4-100MHz |
| Sheath Material: | PVC | Maximum tension: | 110 N |
| Sheath External O.D.: | 6.3 ± 0.4 mm |
