Grey Colour Four Pair 305m Flat Internet Network Cable

Grey Colour Four Pair 305m Flat Internet Network Cable

Large Image :  Grey Colour Four Pair 305m Flat Internet Network Cable

Product Details:

Product Details:

Place of Origin:Guangdong, China
Brand Name:/OEM/ODM
Certification:Unilever/ROSH/CE/ANATEL/CPR/ETL
Model Number:CAT6

Payment & Shipping Terms:

Minimum Order Quantity:Stock as client's request, customized type 30000meter.
Price:Negotiation
Packaging Details:Outer package : carton case
Delivery Time:7-15 business days
Payment Terms:, T/T, MoneyGram
Supply Ability:400000 Meters per Month, sample is available

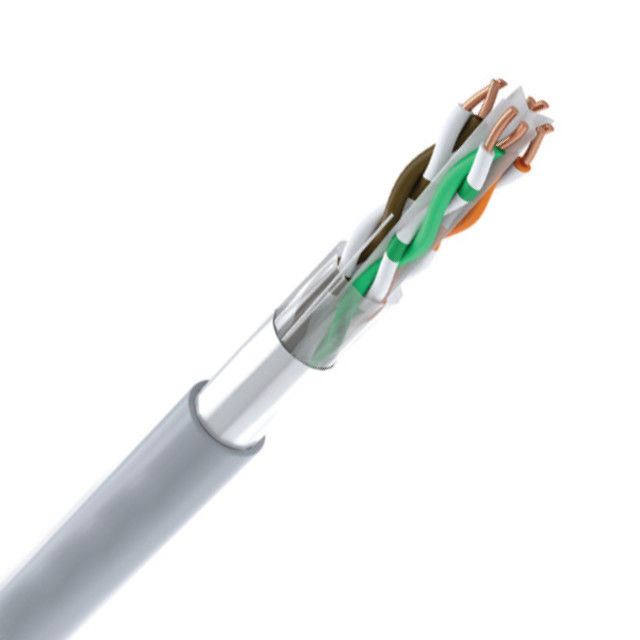

Grey Colour Four Pair 305m Flat Internet Network Cable

Description
Conductor Material:: Bare Copper Length:: 305m/1000ft
Conductor Diameter:: 0,51mm ( 24AWG ) Insulation:: 0,92 ±0,04 Solid Polythene
Sheath Diameter:: 6,15mm ± 0,20 Grey Colour Outer Sheath Types:: PVC, PE Or LSZH
Screen:: Al-Pes Tape And 0,50mm SnCu Ground Wire Number Of Conductor:: 8
High Light:

305m Flat Internet Network Cable

,

ROSH Flat Internet Network Cable


Hot Selling 4 Pair Cat 6 Ethernet Cable Flat Internet Network Cable

These cables used in data transmission systems that work up to 200 Mbit/s. These cables are particularly preferred in the offices, buildings where many terminals are found. The outer sheath material of CAT6 UTP cable is PVC for indoor application; black PE is for outdoor application and HFFR is free flame retardant compound which has low smoke density and no toxic/corrosive gases during a fire.



CABLE CONSTRUCTION
Inner Conductor
Ø0.51 mm Electrolytic Copper ( 24 AWG )
Isolation
Polyethylene ( EN 50290-2, VDE 0207-2YI1 )
Insulation Colour
IEC 708-1
Lay-up
Cores twisted together in pairs and all pairs
Sheath
PVC Grey ( EN 50290-2, HD 21.1.S4, VDE 0281TM1 )
PE Black ( EN 50290 -2 -24 )
HFFR Grey ( EN 50290-2, VDE 0207, HD624.7 S1 HM2 )
Screen
Al-Pes Tape
Sheath Diameter
Ø7.00 mm
Standards
IEC 189, IEC 708, EIA/TIA 568
Copper Weight ( Kg/Km )
16
Cable Weight ( Kg/Km )
FTP:43 P-FTP:46 H-FTP:56
Standart Packing
305 - 500 - 1000m
ELECTRICAL PARAMETERS
Conductor Resistance
(20 °C Max.)72.0 Ω/km
Capacity Imbalance
330 pF / 100 mt (Max)
Resistance Unbalance (Max.)
5%
Impedance
100 ±15 Ω
Operating Voltage
250V
Velocity of Propagation
67%
Test Voltage (Core / Core)
1200 V
Operating Temperature
- 20°C...+60 °C
Insulation Resistance: (20 ° C min.)
5000 Ω/km
Bending Radius (Min)
8 x D
Capacity (Max.)
