Product Details:
Product Details:
Payment & Shipping Terms:
|
| Conductor Material:: | Bare Copper | Shield:: | UTP |
|---|---|---|---|
| Jacket:: | New PVC/ROHS | Port:: | Guangzhou |
| Color:: | Black, Red, White, Yellow, Gray (custom Color ) | Diameter:: | 0.51mm (24AWG) |
| Number Of Conductor:: | 8 | Product Type:: | Cat5e Patch Cord |
| Certificate:: | FCC, CE/ROHS/FCC | Application:: | Telecommunication, Computer Networks, Instrumentation |
| High Light: |
3m Network LAN Cable,FCC Network LAN Cable,UTP CAT5e Patch Cord |
||

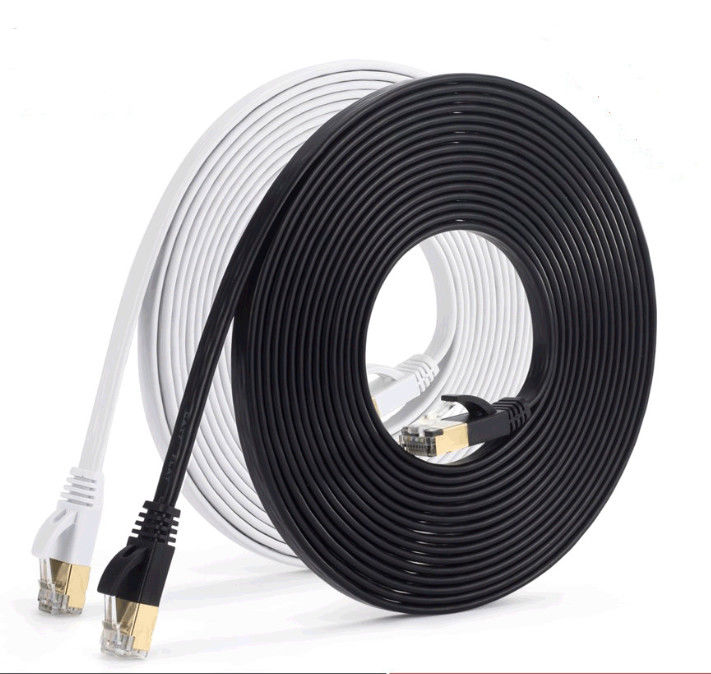

Flat 3m UTP High Quality Network CAT5e Patch Cord
1.Product Details
| Category | CAT 5, CAT5e, CAT 6, CAT6a, CAT 7, CAT 8 |
| Specification | 2 pairs, 4 pairs |
| Shape | Round or Flat |
| Connector | Bare copper, Standard copper, CCA, CCS, CCAM, RJ45, 8P8C |
| Jacket | PVC, LSZH |
| Color | Grey, Blue, White, Black, Yellow, Pink, Orange, etc |
| Meters | 1mtrs-100mtrs |
| Application | Telecommunication, Computer networks, Instrumentation, iPod, Microphone, Multimedia, Monitor, Telephone |
Product Features:
Cat5e lan cable/Cat6 lan cable,network cable,ethenet cable
1)Tranmission frequency:100-350MHZ
2)Transmission speed:100-1000mbps
3)Transmission range:100-250m
4)Compliance:ETL verified ANSI TIA/EIA568-2,UL Subject 444.(UL) c(UL) type CMR/CMG.Type CM/CMH.Type CM/CMH,NEC Srticle 800 Type CMP or CM.ISO/IEC 11801.ROHS Compliant.
5)Application: 100 Base-TX, 100VG-AnyLAN, 1000Base-T, ATM, Noisy Environment
6)Electrical characteristics:
*Impedance: 100 ± 15Ω
*Static electric capacity: 17.1nf/kF (maximum)
*Resistance: 28.6/kF (maximum)
*Unbalance resistance: 5% (maximum)
*Unbalance capacity: 330pF/100m (maximum)
*Communicate rate: 65%
High Performance Internet cable is Cat6 rated; The Ethernet cord with 24 AWG copper wire provides universal connectivity for LAN network components such as PCs, computer servers, printers, routers, switch boxes, network media players, NAS, VoIP phones, PoE devices, and more; Comes with different colors, easy for cable management and cable identification
A Category 6 Ethernet patch cable is also referred to as a Cat6 network cable, Cat6 cable, Cat6 Ethernet cable, or Cat 6 data/LAN cable. A wired Cat 6 data cable is more reliable and secure than a wireless network or Cat5 cable network for your internet connection
The connectors with gold-plated contacts, molded strain-relief boots, and snagless molds resist corrosion, provide durability, and ensure a secure connection; Copper Ethernet cables enhance cable performance and comply with specifications for communications cables
Flexible and durable RJ45 cable with high bandwidth of up to 550 MHz guarantees high-speed data transfer for server applications, cloud computing, video surveillance, and online high-definition video streaming
2.Packing & Shipping
1) Packing Lengths: 100/roll, 200m/roll, 300m/roll, 305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
5) Usually we deliver our products by SEA. Other delivery methods are available upon request from clients.
