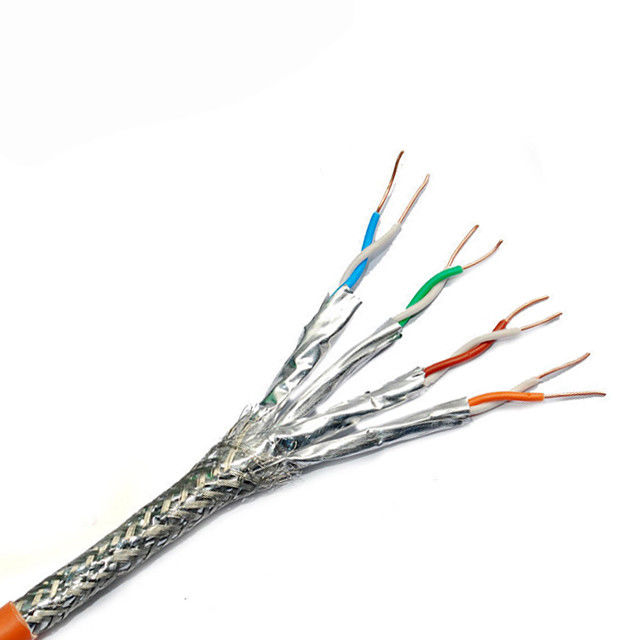

40G 2000Mhz CAT8 CAT7E Ethernet LAN Cable Double Shielded FTP

40G 2000Mhz CAT8 CAT7E Ethernet LAN Cable Double Shielded FTP

Large Image :  40G 2000Mhz CAT8 CAT7E Ethernet LAN Cable Double Shielded FTP

Product Details:

Product Details:

Place of Origin:Guangdong, China
Brand Name:/OEM/ODM
Certification:Unilever/ROSH/CE/ANATEL/CPR/ETL
Model Number:CAT8

Payment & Shipping Terms:

Minimum Order Quantity:Stock as client's request, customized type 30000meter.
Price:Negotiation
Packaging Details:305m/box,color box,reel or as customers' request
Delivery Time:7-15 business days
Payment Terms:, T/T, MoneyGram
Supply Ability:400000 Piece/Pieces per Month, sample is available
Contact Now

40G 2000Mhz CAT8 CAT7E Ethernet LAN Cable Double Shielded FTP

Description
Model Number::CAT8-S/FTPApplication::Networking
Number Of Conductor::8Jacket::PVC, LSZH, PE Optional
Shield::Foil& Braid Shielded Twisted Pair, U/FTPPacking::305m Easy Pull Box, Wooden/plastic/cardboard/empty Spool
Color::White,black,gray,yellow,orange,purple, Customized Color OptionalConductor::Pure Copper ( Oxygen-free Copper)
Core::4 Pairs 8 CoreFlame Test Rated::Plenum(CMP)/Riser(CMR)/Vertical Tray(CM)
High Light:

CAT7E Ethernet LAN Cable

,

2000Mhz Ethernet LAN Cable


40G High Speed 2000Mhz Double Shielded FTP CAT8 CAT7E Etherent Function Network Cable

High Quality Material
99.99% Bare Copper Core
Twist Pairs
Close pairs twisted to achieve low loss
Incredible Durability
Durable PVC/ LSZH jacket for maximum curve protection and long life cycle
Environment Jacket
New flexible enviroment PVC/LSZH jacket
Features
Precise triple-twist technology to achieve high transfer performance
Rated temperature over 75 °C
Minimum bending radius over 8D
RoHS/REACH Complied PVC, PE or LSZH Jacket
Reference Standard UL444
Fire resistance rate: CMP, CMR,CM optional
Complies to ANSI/TIA-568-C.2 &ISO/IEC 11801; EN50173&IEC61156-5

Application
Volp /ISDN/ Token
100Mbps TP-PDM
Analog and Data Video
TR-16 Active and Passive
155M/622M/1.2G ATM
IEEE 802.3-T: 10Base-T; 100Base-T; 1000Base-T;10GBase-T
ITEM
SSTP CAT8 ETHERNET CABLE
Conductor
Solid bare copper (OFC)
AWG
22AWG
Conductor Diameter(mm)
0.64±0.02
Insulation
Foam-skin PE
Insulation dimension(mm)
1.68±0.05
Jacket
PVC/LSZH
Sheath Average Thickness
0.75mm
Sheath Diameter
8.4±0.3mm
Individual shield & material
Alumimum foil (50/12um)
Overall shield & material
Tinned Copper
Shield coverage
Over 45% (16/6/0.1)
Drain wire
1/0.32 BC
Elongation after aging
Min.100%
<div class="magic-12" style="box-sizing: content-box; margin: 0px; padding: 5px 10px; border: 0px; font: inherit; vertical-align: baseline; w
