Indoor 305m 1000ft Pull Box Network Lan Cable Bare Copper CCA

Certification
1
2
Customer Reviews
We're very Pleased to cooperate with you. Your good service makes me be satisfied! Will definitely be ordering more in the futher.

—— —— John Smith

Good quality Good Service! I am impressed. Keep cooperating!

—— —— Mohamed Rebai

I'm very pleased with the service of this company,I believe that their business will be better and better.

—— —— Ashot Matinyan

I'm Online Chat Now

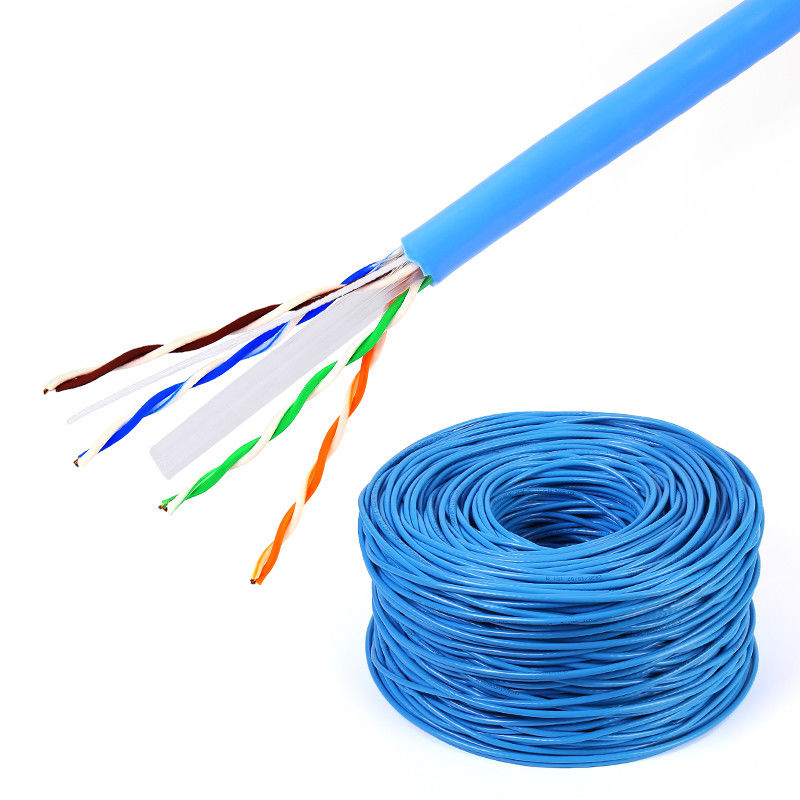

Indoor 305m 1000ft Pull Box Network Lan Cable Bare Copper CCA

Indoor 305m 1000ft Pull Box Network Lan Cable Bare Copper CCA

Large Image :  Indoor 305m 1000ft Pull Box Network Lan Cable Bare Copper CCA

Product Details:

Product Details:

Place of Origin:Guangdong, China
Brand Name:/OEM/ODM
Certification:Unilever/ROSH/CE/ANATEL/CPR/ETL
Model Number:CAT6

Payment & Shipping Terms:

Minimum Order Quantity:Stock as client's request, customized type 30000meter.
Price:Negotiation
Packaging Details:305m/box,color box,reel or as customers' request
Delivery Time:7-15 business days
Payment Terms:, T/T, MoneyGram
Supply Ability:400000 Piece/Pieces per Month, sample is available

Indoor 305m 1000ft Pull Box Network Lan Cable Bare Copper CCA

Description
Number Of Conductors::8Conductor::Copper CCA CCS
Length::305m 1000ftJacket::PVC
Packing::2 Boxes /cartonColor::Blue
Diameter::0.45/0.48/0.51/0.56Application::Telecommunication
High Light:

1000ft Network Lan Cable

,

Bare Copper CCA Network Lan Cable

,

ETL Network Lan Cable

Cat 6 Cable Bare Copper Or CCA 305m 1000ft Pull Box Lan Cable UTP Cat6 Indoor Cable



Product Description

PHYSICAL PARAMETERS
Conductor
solid bare copper, 0.56 ± 0.005mm
Insulation material
skin foam skin polyethylene
Insulation diameter
1.33 ± 0.05mm
Wire pair shielding
aluminum foil
Braiding Shield
tinned copper or aluminum-magnesium alloy wire, coverage rate ≥40%
Jacket diameter
7.6 ± 0.5mm
Jacket material
PVC or LSZH low smoke halogen-free (according to different jackets), in line with RoHS and REACH requirements
MECHANICAL PARAMETERS
Tensile strength before aging
≥13.5Mpa (PVC), ≥10.0Mpa (LSZH low smoke halogen-free)
Elongation before aging
≥150% (PVC), ≥125% (LSZH low smoke halogen-free)
Aging time
100 ℃ × 24 hours × 7 days
Tensile strength after aging
≥12.5Mpa (PVC), ≥8Mpa (LSZH low smoke halogen-free)
Elongation after aging
≥125% (PVC), ≥100% (LSZH low smoke halogen-free)
Coldbending (-20±2°C×4hours)
8 times the outer diameter of the cable without cracking
ELECTRICAL PARAMETERS
Propagation delay skew
≤25ns/100m
Rate of transmission
74%
Unbalanced capacitance to ground
maximum 330pf / 100m
DC resistance
Maximum 9.5Ω / 100m
DC resistance unbalance
Maximum 2%







Indoor 305m 1000ft Pull Box Network Lan Cable Bare Copper CCA 0Indoor 305m 1000ft Pull Box Network Lan Cable Bare Copper CCA 1Indoor 305m 1000ft Pull Box Network Lan Cable Bare Copper CCA 2



Application

Indoor 305m 1000ft Pull Box Network Lan Cable Bare Copper CCA 3







Packing & Shipping
1) Packing Lengths: 100/roll, 200m/roll, 300m/roll, 305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
5) Usually we deliverour products by SEA. Other delivery methods are available upon request from clients.







Our service
1) Quick Response -- All inquiries will be replied within 24 hours.
Professional Quotation -- All pricing will be quote according to customers' detailed specifications & requirements.
2) OEM & ODM Service -- Can print your own brand on the cable printing with foot or meter marking. -- Make customized designs for stickers, drums, outer cartons, etc.
3) Stable Quality -- All materials and products passed restrict QC procedures, compliant with international standards.
4) Fast Delivery -- LCL orders, 15 Days af
