UTP Computer cat6a RJ45 Lan Network Drop Cable Patch Cord

UTP Computer cat6a RJ45 Lan Network Drop Cable Patch Cord

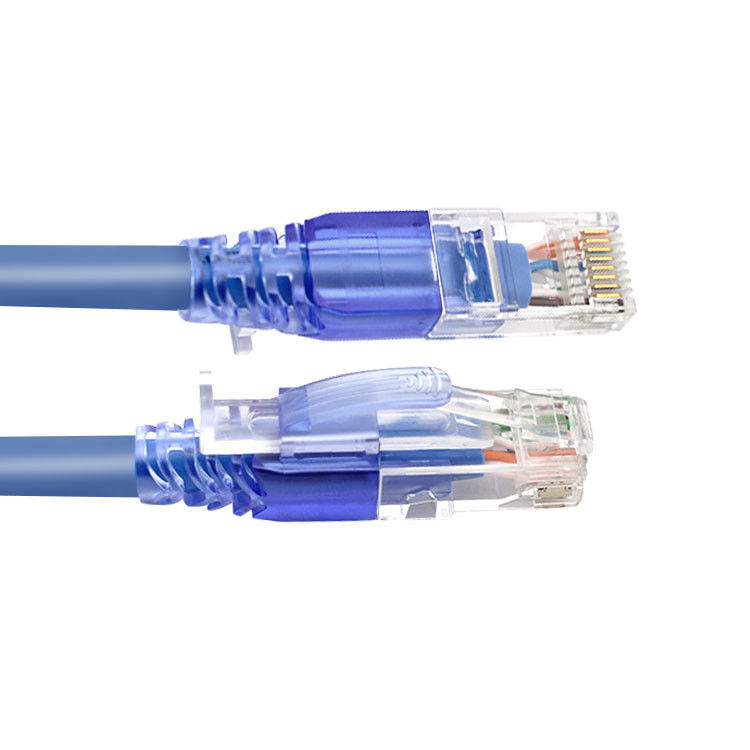

Large Image :  UTP Computer cat6a RJ45 Lan Network Drop Cable Patch Cord

Product Details:

Product Details:

Place of Origin:Guangdong, China
Brand Name:/OEM/ODM
Certification:Unilever/ROSH/CE/ANATEL/CPR/ETL
Model Number:Cat6

Payment & Shipping Terms:

Minimum Order Quantity:Stock as client's request, customized type 30000meters.
Price:Negotiation
Packaging Details:1pc/pe bag, polybag, 100-400pcs in one carton box, customer requests
Delivery Time:7-15 business days
Payment Terms:, T/T, MoneyGram
Supply Ability:2000000000 Piece/Pieces per Month
Contact Now

UTP Computer cat6a RJ45 Lan Network Drop Cable Patch Cord

Description
Conductor::Pure CopperInner Wire::24AWG
Length::1M/2M/3M/5M/7M/10M/OEMPackaging::1pcs/PE Bag
Cable Jacket::PVC/LSZHNumber Of Conductors::8
Connector::RJ45 Plug With Gold Plating ContactsStandard Test::FLUKE Channel / Component Test
High Light:

RJ45 Lan Network Drop Cable

,

Cat6a Network Drop Cable

,

UTP Computer Network Drop Cable

Indoor UTP Computer Ethernet Cat5e Cat6 cat6a RJ45 Lan Network Drop Cable Patch Cord

Material Instruction
1. 24AWG Soft Plain Copper
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket

Physical Electrical Characteristics
Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 100 MHz.


DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-100MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.



Standard / Certificate


Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000, ROHS.

UTP Computer cat6a RJ45 Lan Network Drop Cable Patch Cord 0UTP Computer cat6a RJ45 Lan Network Drop Cable Patch Cord 1UTP Computer cat6a RJ45 Lan Network Drop Cable Patch Cord 2

Applications

10Base-T4
100Base-TX
100Base-VG-ANYLAN
155Mbps ATM
622 Mbps ATM





2.Packing & Shipping
1) Packing Lengths: 100/roll, 200m/roll, 300m/roll, 305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
5) Usually we deliver our products by SEA. Other delivery methods are available upon request from clients.



NO.


GOODS NAME


SPEC.

PACKING/PCS
(QTY IN CARTON)
          Carton Dimension(CM)


UNIT.CBM
L
W
H
1
UTP CAT5E
PATCH CORD
0.5M
750
50
35
30
0.0525
2
1M
500
50
35
30
0.0525
3
3M
250
50
35
30
<div align="center" style="box-
