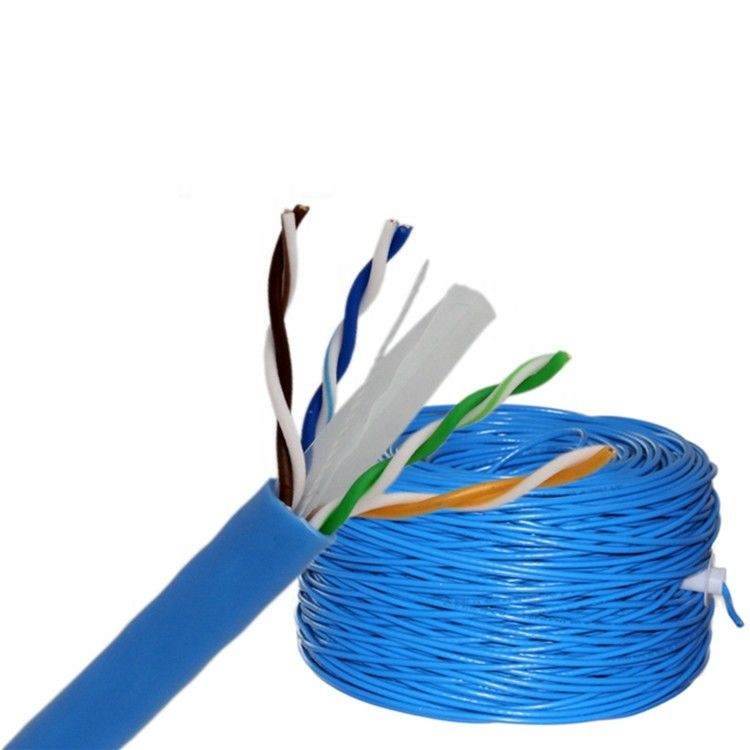

OEM Blue 24AWG 0.56 UTP Cat6 Indoor Cable LSZH Jacket

Large Image : OEM Blue 24AWG 0.56 UTP Cat6 Indoor Cable LSZH Jacket

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	/OEM/ODM
Certification:	Unilever/ROSH/CE/ANATEL/CPR/ETL
Model Number:	CAT6

Payment & Shipping Terms:

Minimum Order Quantity:	Stock as client's request, customized type 30000meter.
Price:	Negotiation
Packaging Details:	305m/box,color box,reel or as customers' request
Delivery Time:	7-15 business days
Payment Terms:	, T/T, , L/C
Supply Ability:	400000 Piece/Pieces per Month, sample is available

Contact Now

OEM Blue 24AWG 0.56 UTP Cat6 Indoor Cable LSZH Jacket

Description

Number Of Conductors::	8	Conductor::	Bare Copper
Insulation::	Color-coded PE	Color::	Blue, Black, Grey, White
Packing::	2 Boxes /carton	Type::	UTP
Length::	305m/1000ft Per Pull Box	Jacket::	New PVC/PE/LZSH
High Light:	UTP Cat6 Indoor Cable , 24AWG Cat6 Indoor Cable , LSZH Cat6 Indoor Cable

Cat 6 Cable Pass Test Pure Copper 24AWG 305m 1000ft 0.56 UTP Cat6 Indoor Cable

Product Description

PHYSICAL PARAMETERS
Conductor	solid bare copper, 0.56 ± 0.005mm
Insulation material	skin foam skin polyethylene
Insulation diameter	1.33 ± 0.05mm
Wire pair shielding	aluminum foil
Braiding Shield	tinned copper or aluminum-magnesium alloy wire, coverage rate ≥40%
Jacket diameter	7.6 ± 0.5mm
Jacket material	PVC or LSZH low smoke halogen-free (according to different jackets), in line with RoHS and REACH requirements
MECHANICAL PARAMETERS
Tensile strength before aging	≥13.5Mpa (PVC), ≥10.0Mpa (LSZH low smoke halogen-free)
Elongation before aging	≥150% (PVC), ≥125% (LSZH low smoke halogen-free)
Aging time	100 ℃ × 24 hours × 7 days
Tensile strength after aging	≥12.5Mpa (PVC), ≥8Mpa (LSZH low smoke halogen-free)
Elongation after aging	≥125% (PVC), ≥100% (LSZH low smoke halogen-free)
Coldbending (-20±2°C×4hours)	8 times the outer diameter of the cable without cracking
ELECTRICAL PARAMETERS
Propagation delay skew	≤25ns/100m
Rate of transmission	74%
Unbalanced capacitance to ground	maximum 330pf / 100m
DC resistance	Maximum 9.5Ω / 100m
DC resistance unbalance	Maximum 2%

OEM Blue 24AWG 0.56 UTP Cat6 Indoor Cable LSZH Jacket 0

OEM Blue 24AWG 0.56 UTP Cat6 Indoor Cable LSZH Jacket 4

Application

Packing & Shipping
1) Packing Lengths: 100/roll, 200m/roll, 300m/roll, 305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
5) Usually we deliverour products by SEA. Other delivery methods are available upon request from clients.

Our service
1) Quick Response -- All inquiries will be replied within 24 hours.
Professional Quotation -- All pricing
