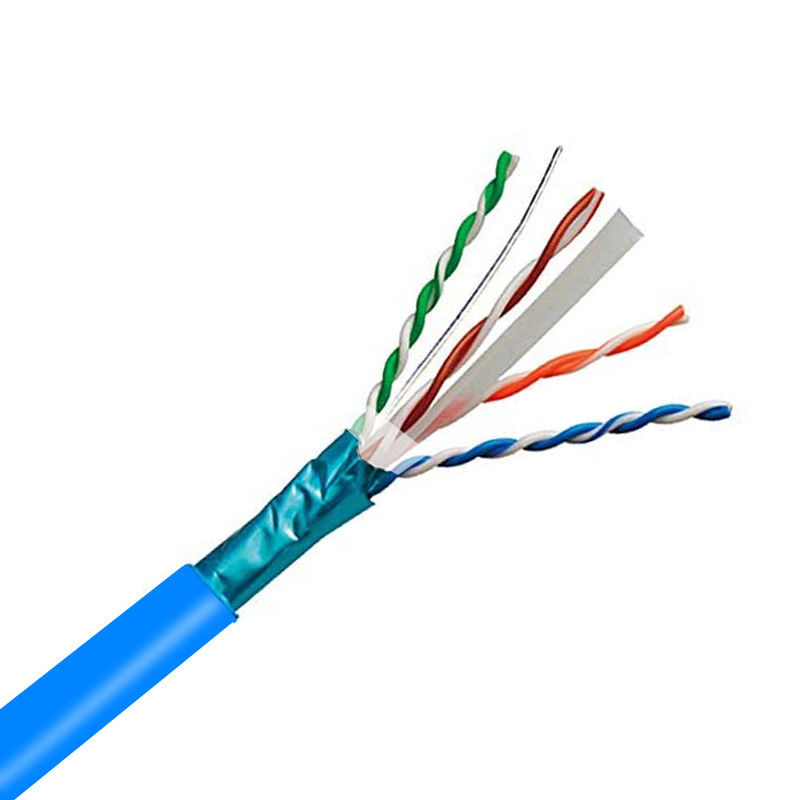

High Density Polyethylene Pure Copper Network Lan Cable

High Density Polyethylene Pure Copper Network Lan Cable

Large Image :  High Density Polyethylene Pure Copper Network Lan Cable

Product Details:

Product Details:

Place of Origin:Guangdong, China
Brand Name:/OEM/ODM
Certification:Unilever/ROSH/CE/ANATEL/CPR/ETL
Model Number:CAT6

Payment & Shipping Terms:

Minimum Order Quantity:Stock as client's request, customized type 30000meter.
Price:Negotiation
Packaging Details:305m/box,color box,reel or as customers' request
Delivery Time:7-15 business days
Payment Terms:, T/T, , L/C
Supply Ability:400000 Piece/Pieces per Month, sample is available
Contact Now

High Density Polyethylene Pure Copper Network Lan Cable

Description
Number Of Conductors::8Conductor Size::23 AWG/Customize
Insulation Material::High Density PolyethyleneShield::UTP/FTP/SFTP/Customized
Outer Jacket Material::PVC/PE/LSZHConductor Material::Solid Bare Copper
Insulation Diameter::0.95 ± 0.1mmOuter Jacket Diameter::6.0mm
High Light:

Polyethylene Network Lan Cable

,

LSZH Network Lan Cable

,

ETL Network Lan Cable

High Performance Cat 6 Cat6 FTP 22 23 24 AWG Pure Copper Network Lan Bulk Ethernet Cable 305m 1000ft Box



Product Description



Engineering Series-----Cat6 F/UTP 23AWG (0.58mm) Solid Pure Oxygen-free Copper (purity: 99.99%) Lan Cable

Features and Benefits:
• Designed and engineered with precision balance to offer ultimate headroom.
• Foil shield reduces electromagnetic interference (EMI) for optimal performance.
• Ensures increased headroom for future applications, lower bit-error rates, and higher signal transmission quality.
• 8*23AWG(0.58mm) or 24AWG(0.51mm) Solid Pure Copper Conductor.
• High-end optimized performance to support the most bandwidth-intense applications, average 1 Gigabit and up to 10 Gigabit.
• Supporting IEEE 802.3af POE & POE+, DC 300V. • Performance guaranteed to 250 MHz, highest up to 550 MHz.
• Low MOQ starting at 10 rolls for regular specification in stock. • Improved cable temperature rating (75°C Riser) for greater protection against increased operating temperatures and for high-wattage applications.
• FLUKE Test Passed.


Applications:

• IEEE 802.3: 1000 BASE-T, 100 BASE-TX, 10 BASE-T, 2.5G BASE-T, 5G BASE-T, 10G BASE-T(less than 45m), POE, POE+ • ANSI/TIA 854: 1000 BASE-TX • CDDI, Token Ring, ATM (155 Mbps and 622-Mpbs) • Digital Video • Broadband and Baseband Analog Video

Standard Compliances

• ANSI/TIA 568.2 C.2 • TIA/EIA-568-C.2 Category 6 • ANSI/ICEA S-90-661 Category 6 • NEMA WC63.1 Category 6
• ANSI/TIA 862 (Building Automation)
• NEC/CEC Type CM (UL 1666) for Non-Plenum • RoHS Compliance for the Requirement of European Union Issued Directive 2002/95/EC
• UL 444

<tr style="box-sizing: border-box; margin: 0px; padding: 0px; font-style: inherit; font-variant: inherit; font-weight: inherit; font-stretch: inherit; line-height: inherit; font-family: inherit; background: rgb(247, 248, 2
Physical Characteristics
Regular Specification(10 rolls)
OEM Optional (MOQ: 20000m)
Conductor
24 AWG (0.51&plusmn;0.015mm )
or
23 AWG (0.56&plusmn;0.015mm)
22AWG, 26AWG, 28AWG
Conductor Structure
Sold
Stranded
Conductor Material
99.99% Pure Copper
CCA
