Product Details:
Product Details:
Payment & Shipping Terms:
|
| Product Name:: | CAT5E UTP | Conductor:: | CCA |
|---|---|---|---|
| Color:: | Blue | Application:: | Networking |
| Jacket:: | PVC | Number Of Conductor:: | 8 |
| Insulation:: | HD-PE | Length:: | 1m |
| High Light: | Network UTP Cat 5 Cable,1m Length Cat 5 Cable | ||
| Conductor Size: | 26awg(7x0.16mm) | Outer Jacket Diameter: | 5.0mm+/-0.01mm |
| Conductor Material: | CCA | DC Resistance(MAX): | 9.5Ω/100m |
| Number of Conductors: | 4 pairs Twisted | DC Resistance Imbalance: | 2.50% |
| PVC Jacket Color | Blue | Working Capacitance(Max): | 5.4nF/100m |
| Insulation Material: | HDPE | Working Capacitance(Max): | 10000MΩ.km |
| Insulation Diameter: | 0.9+/-0.01mm | Transmission Velocity: | 65% |
| Jacket Material: | PVC | Operating Temperation: | -40°C-75°C |
| Application | 1.Computer network cabling project 2.Broadband network communication 3.Digital ISDN and ATM 155Mbps network 4.Ethernet network 5.Audio and data transmission | ||

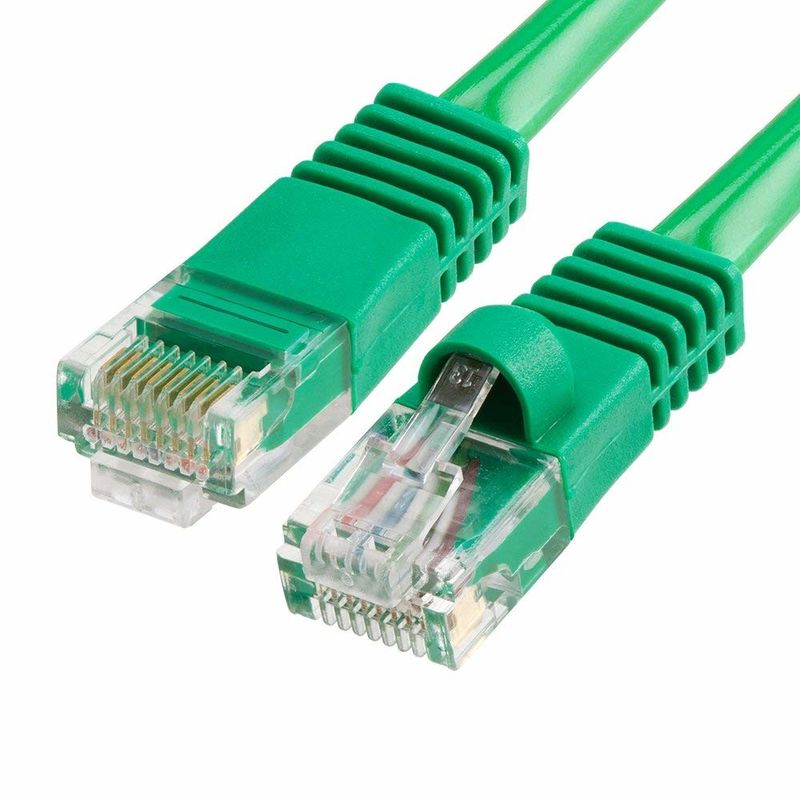

High-precision, cat5e, ANSI/TIA-568-C.2 compliant, ETL Verified, Ethernet LAN patch cable, pre-terminated with Cat 5e RJ45 connectors
Premium quality Category 5 enhanced cable, long-lasting materials, durable design, and a Lifetime Warranty for the price of a generic cable
UTP 26AWG stranded conductors for flexibility and minimum crosstalk, 50 micron gold-plated contacts for high-speed data transfer and corrosion resistance
Compatible with Ethernet 10Base-T, 100base-tx(fast Ethernet), 1000Base-T (Gigabit Ethernet) and peer-to-peer, as well as any other devices that utilize 8c8p networking cables
Ethernet cat5e, Cat 5e patch cable, RJ45 cable , Gigabit Ethernet cable, multi cable, electronic cables, router cable , computer cables, Ethernet cord, computer parts.
Packing & Shipping
1) Packing Lengths: 100/roll, 200m/roll, 300m/roll, 305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
5) Usually we deliver our products by SEA. Other delivery methods are available upon request from clients.
