Product Details:
Product Details:
Payment & Shipping Terms:
|
| Jacket Color:: | Aqua | Fiber Cores:: | Duplex |
|---|---|---|---|
| Connector Types:: | LC-LC UPC , Etc | Application:: | FTTTH FTTTB FTTTX |
| Patch Cord Length:: | 1m | Warranty Time:: | 2 Years |
| Name:: | Fiber Optic Patch Cord | Return Loss:: | ≥ 50 DB(UPC ) |

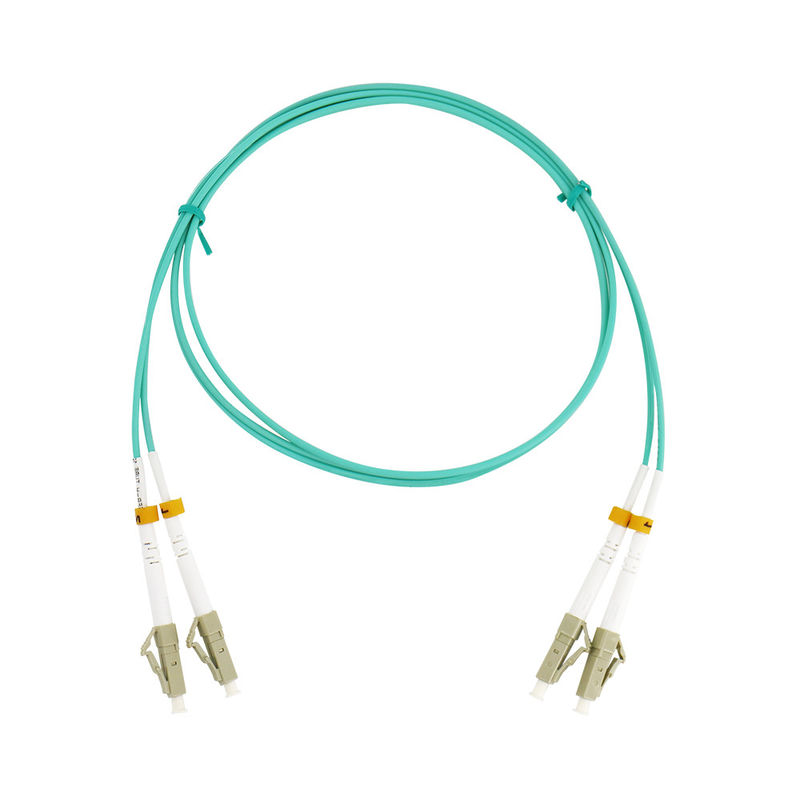

| High Light: | 1m Duplex Fiber Optic Patch Cord,FTTH OM3 Fiber Optic Patch Cord | ||
Product Description
Fiber Optic Patch cords are the basic passive components of Optical Fiber Telecommunication System,are utilized to achieve accurate mounting for precision alignment of fiber optical components.
HJ provide high quality optical fiber patch cords,100% tested quality guarantee before delivery,with ISO standards and RoHS compliant.
Our product range covers both single mode and multi-mode patch cords,and be available for all major fiber connector types.
Operation Environment
-Working Temperature:-25~+70ºC Storage Temperature:-40~+85ºC
-Humidity ≤95%(0-35ºC)
-Atmospheric pressure: 62kpa~106kPa.
Features
High quality performance and Environmental stability
Good Repeatability, and Exchangeability
Available fiber cable diameters: 0.9mm, 2.0mm, 0mm
Fiber cores: Simplex, Duplex or multi-fiber 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers
Pigtail Types: Bundle, Ribbon, Waterproof, Armored
Fiber Mode: Single-Mode, Multi-Mode(OM1/OM2/OM3/OM4)
Connector Types: LC, FC, SC, ST, MU, E2000, etc
Patch Cord Length: on demand of customers
Compliant to IEC, TIA/EIA, NTT standards
Technicial Specification
| Item | Parameter | ||
| Connector | LC, FC, SC, ST, MU, E2000, etc | ||
| Fiber Counts | Simplex, Duplex | ||
| Applicable Fiber mode | SM/MM | ||
| Polish Type | PC | UPC | APC |
| Insert loss | ≤ 0.3dB | ≤ 0.3dB | ≤ 0.3dB |
