| Model NO: | Fiber Optical Patch Cord | Type:: | Optical Fibers, PC/UPC/APC |
|---|---|---|---|
| No. Of Fiber:: | 2 | Use:: | FTTH |
| Color:: | Orange, Yellow, Blue, Aqua | Connetcor:: | LC/SC/FC/ST |
| Core:: | Simplex Or Duplex | ||
| High Light: | UPC Fiber Optic Patch Cord,UPC SC Fiber Optic Patch Cord,UPC Optical Fiber Patch Cord | ||

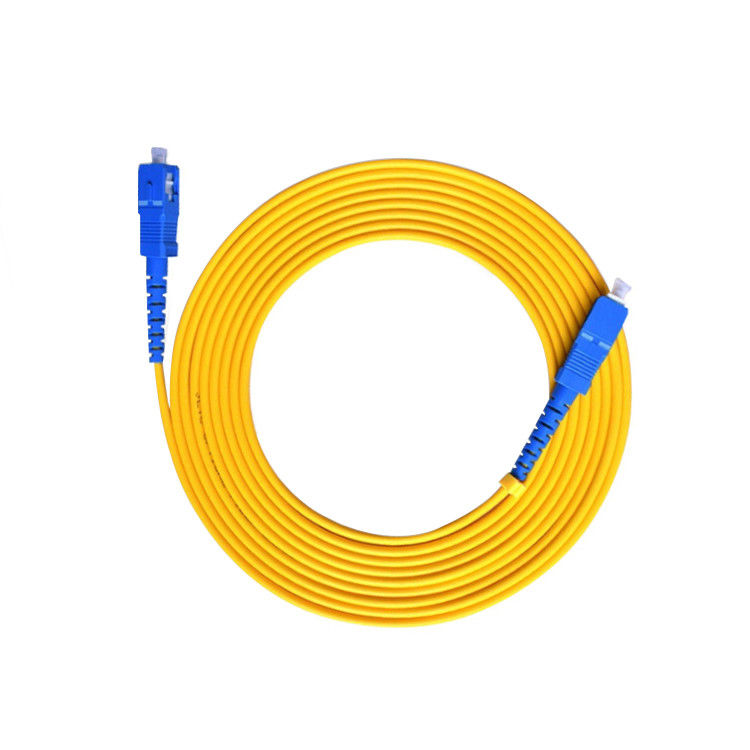

Fiber Optic Patch Cord High quality Single Mode 9/125 Duplex SC/UPC-SC/UPC
Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.
FOCLINK also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
| Designation | Fiber Dia.(μm) | Type | Fast Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10Gbps Ethernet 10GBASE | 40Gbps Ethernet 40GBASE SR4 |
| OM1 | 62.5/125 | Multimode | 2000 Meters | 275 Meters | 550 Meters | 33 Meters | Not supported |
| OM2 | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 82 Meters | Not supported |
| OM3(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 300 Meters | 100 Meters(SR4) |
| OM4(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 400 Meters | 150 Meters(SR4) |
| Singlemode | 9/125 | Singlemode | 2000 Meters | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | N/A |
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
Specification
SM | MM | ||
UPC | APC | APC | |
Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | ||
≥50dB | |||
