Product Details:
Product Details:
Payment & Shipping Terms:
|
| Model NO: | Fiber Optical Patch Cord | Connetcor:: | LC/SC/FC/ST |
|---|---|---|---|
| Connector Type: | SC-SC LC-LC FC-FC ST-ST Or Hybrid | Length: | 1m 2m 3m Or Customized |
| Material:: | PVC/LSZH | Application: | FTTH/Test Equipments/TV/LAN/Telecommunication Equipments |
| Color: | Yellow,Orange Or Others,aqua Or Cusomized | Repeatability: | ≤ 0.2 DB,<=0.3dB |
| High Light: | APC Fiber Optic Patch Cord,UPC Fiber Optic Patch Cord,APC multimode patch cord | ||

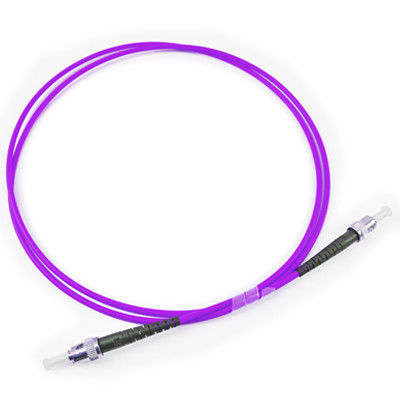

Fiber Optic Patch Cord Cable SC/LC/FC/ST Connector APC UPC Singlemode Multimode Pigtail
Feature:
Price-Competitive
Low Insertion Loss & PDL
Factory-terminated and Tested
Fiber Options: G.652D /G.657A1/OM1/OM2/OM3 and PM Panda Fiber
Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Feature Connector with Ceramic FerrulesApplications
Specifications:
| Item | SM | MM | ||
| Type | FC/APC | FC/UPC | FC/APC | FC/UPC |
| SC/APC | SC/UPC | SC/APC | SC/UPC | |
| ST/APC | ST/UPC | |||
| Return Loss | >=55dB | >=50dB | >=60dB | >=35dB |
| Insertion Loss | <=0.2dB | |||
| Operating Temperature | -40°C ~ +80°C | |||
| Repeatability | <=0.1dB | |||
| Interchangeability | <=0.2dB | |||
| Insertion and Pull Times | 1000 | |||
| Tensile Strength | >100N | |||
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.How to correctly choose between PVC LSZH and OFNP
<img src="/images/load_icon.gif" style="max
