High Light: | Indoor UTP Lan Cable,Cat5e UTP Lan Cable,23AWG UTP Lan Cable |
---|
-10/100 Base -T4
-100 Base -TX
-1000Base-T (Gigabit Ethernet)
-155Mbps ATM
-622Mbps ATM

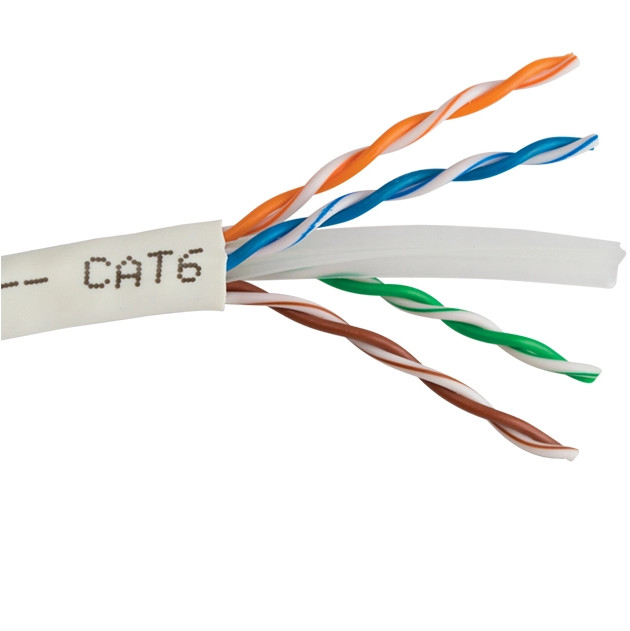

Type | Utp cat6 |
Application | Net-working |
Conductor | Bare copper or Copper clad aluminum |
Conductor diameter | 0.57mm/23AWG |
Shield | AL Foil(Two-side plastic) |
Jacket Material | PVC (CM,CMR,CMP) LOSH |
Insulation | Color-coded PE |
Jacket | Lead free PVC or LSZH or PE |
Related temperature | 60°C,75°C |
OEM/ODM | Offered |
Color | As request |
Package | Reel Pull-out Box |
What is the electrical properties of the cale ?
DC resistance(Max.) | Ω/100m | 9.5 |
DC Resistance Imbalance(Average) | % | 2.5 |
Working Capacitance(Max.) | nF/100m | 5.4 |
Insulation Resistance | MΩ.km | 10000 |
Transmission Velocity | % | <span style="box-sizing: border-box; margin: 0px; padding: 0px; border: 0px; font-style: inherit; font-variant: inherit; font-weight: inherit; font-stretch: inherit; font-size: 16px; line-height: 24px; font-famil |
